Sensor specification



Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

5 MP

Resolution

5.04 MPix

Resolution (h x v)

2456 x 2054 pixels

Aspect ratio

5:4

ADC (analog-to-digital converter)

12 bits

Optical sensor class

2/3"

Optical area

8.473 x 7.086 mm

Optical sensor diagonal

11.012 mm (1/1.45")

Pixel size

3.45 µm, square

Micro lens shift

Manufacturer

Sony

Sensor name, monochrome

IMX264LLR-C

Sensor name, color

IMX264LQR-C

Special features

IDS line scan ("AOI merge mode")

Supports overlap trigger mode for high frame rates in trigger mode

Sensor source gain

Gain



Monochrome model (master gain)

24x

Color model (master gain/RGB)

24x/5x

Analog gain boost

4x

Supported image profiles

Format ID

Resolution

Name

5

2048 x 1536

3M

6

1920 x 1080

Full HD 16:9

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

13

640 x 480

VGA

18

320 x 240

QVGA

20

1600 x 1200

UXGA

25

1280 x 1024

1.3M SXGA

26

2448 x 2048

5M

27

1024 x 768

XGA

28

1024 x 1024

1M

29

800 x 600

SVGA

35

1920 x 1200

WUXGA

36

Sensor maximum (2456 x 2054)



40

2048 x 2048

4M

Quantum efficiency

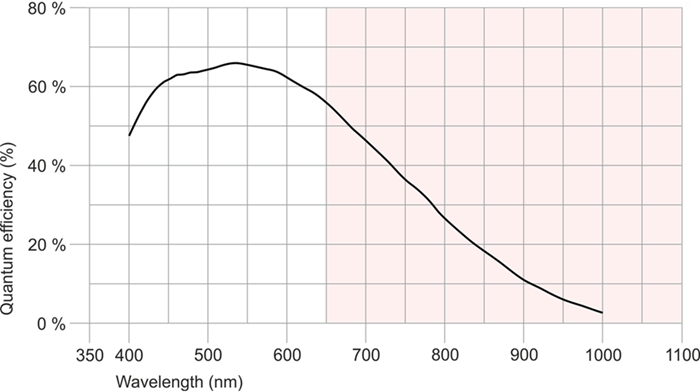

Fig. 273: UI-328x/UI-528x (monochrome)

Fig. 273: UI-328x/UI-528x (monochrome)

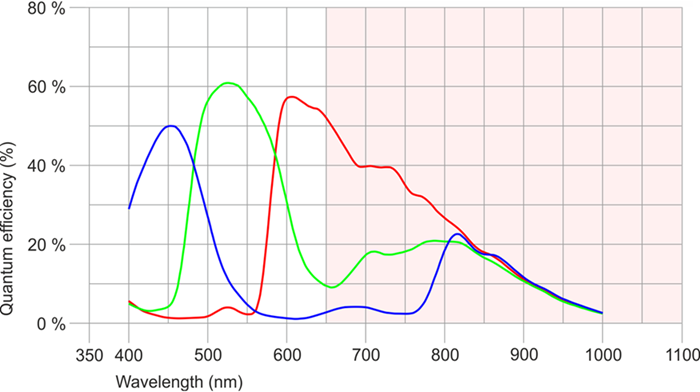

Fig. 274: UI-328x/UI-528x (color)

Fig. 274: UI-328x/UI-528x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
