Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

18 MP

Resolution

18.1 MPix

Resolution (h x v)

4912 x 3684 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

10 bits

Optical sensor class

1/2.3"

Optical area

6.140 x 4.605 mm

Optical sensor diagonal

7.675 mm (1/2.08")

Pixel size

1.25 µm, square

Micro lens shift USB 3 uEye CP Rev. 2 / uEye LE USB 3.1 Gen 1

Micro lens shift USB 3 uEye LE

11.4°

Manufacturer

onsemi

Sensor name, color USB 3 uEye CP Rev. 2 / uEye LE USB 3.1 Gen 1

AR1820HSSC00SHEA0

Sensor name, color USB 3 uEye LE

AR1820HSSC12SHEA0

Special features

BSI pixel technology (back side illumination)

UI-359xCP/UI-359xLE Rev. 2: Global start function

Gain



Color model (master gain/RGB)

16.0x/4.0x

Analog gain boost

-

Supported image profiles

Format ID

Resolution

Name

4

2592 x 1944

5M

6

1920 x 1080

Full HD 16:9

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

13

640 x 480

VGA

20

1600 x 1200

UXGA

21

3840 x 2748

10M

25

1280 x 1024

1.3M SXGA

27

1024 x 768

XGA

30

1360 x 1024

1.4M 4:3

36

Sensor maximum (4912 x 3584)



37

4096 x 2304

4K Cinema

38

3840 x 2160

Ultra HD

39

4912 x 2762

Widescreen 16:9

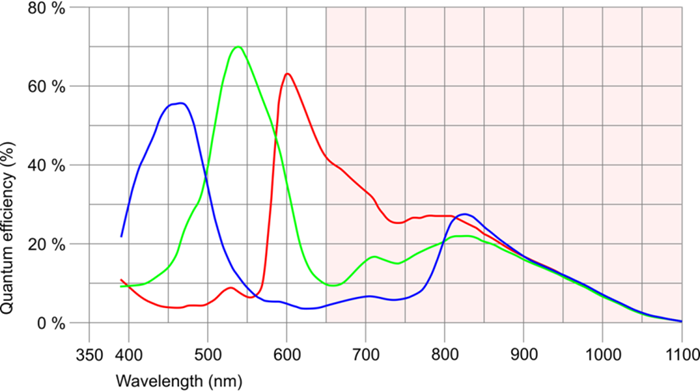

Quantum efficiency

Fig. 285: UI-359x (color)

Fig. 285: UI-359x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
