Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

6 MP

Resolution

6.41 MPix

Resolution (h x v)

3088 x 2076 pixels

Aspect ratio

3:2

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/1.8"

Optical area

7.410 x 4.980 mm

Optical sensor diagonal

8.938 mm (1/1.79")

Pixel size

2.40 µm, square

Micro lens shift

Manufacturer

Sony

Sensor name, monochrome

IMX178LLJ-C

Sensor name, color

IMX178LQJ-C

Special features

UI-388xCP/UI-588x only: IDS line scan ("AOI merge mode")

Sensor source gain

Supports overlap trigger mode for high frame rates in trigger mode

Global start function

Gain



Monochrome model (master gain)

14.5x

Color model (master gain/RGB)

14.5x/5.0x

Analog gain boost

1.41x

Supported image profiles

Format ID

Resolution

Name

4

2592 x 1944

5M

5

2048 x 1536

3M

6

1920 x 1080

Full HD 16:9

7

1632 x 1224

2M

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

20

1600 x 1200

UXGA

23

2560 x 1920

5M

24

768 x 576

CCIR

25

1280 x 1024

1.3M SXGA

26

2448 x 2048

5M

27

1024 x 768

XGA

28

1024 x 1024

1M

29

800 x 600

SVGA

30

1360 x 1024

1.4M 4:3

35

1920 x 1200

WUXGA

36

Sensor maximum (3088 x 2076)

Maximum

40

2048 x 2048

4M

41

3072 x 2048

6M

Quantum efficiency

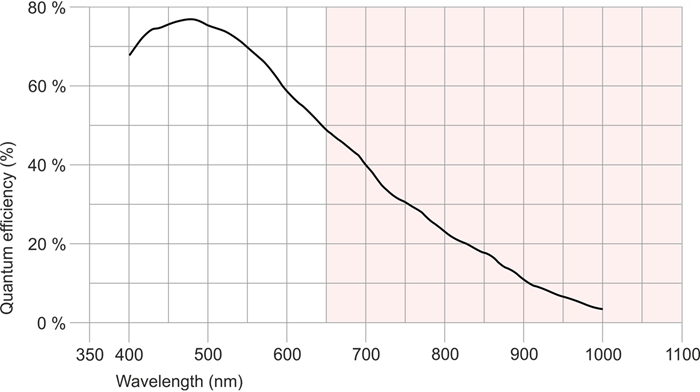

Fig. 290: UI-388x/UI-588x (monochrome)

Fig. 290: UI-388x/UI-588x (monochrome)

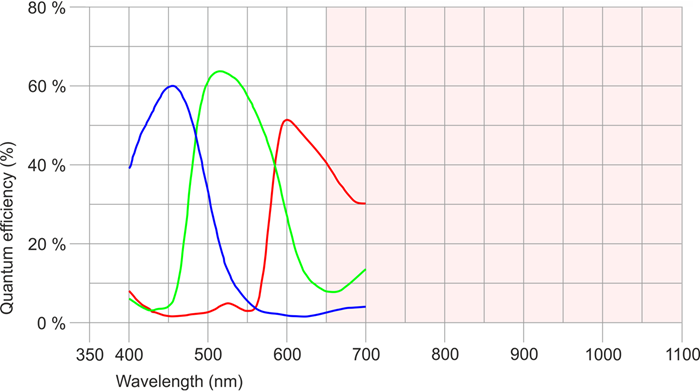

Fig. 291: UI-388x/UI-588x (color)

Fig. 291: UI-388x/UI-588x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
