Digital input specifications



Min.

Max.



Level low

0

0.8

V

Level high

2.0



V

Voltage range

0

3.3

V

Trigger pulse width (edge)

Logic input

µs

Trigger edge steepness

Logic input

V/ms

Breakdown voltage

not applicable (no optocoupler)

V

Input current



10

µA

hint_notice

NOTICE! The digital input of the GigE uEye LE is not potential-free and has no protective circuits.

Digital input wiring

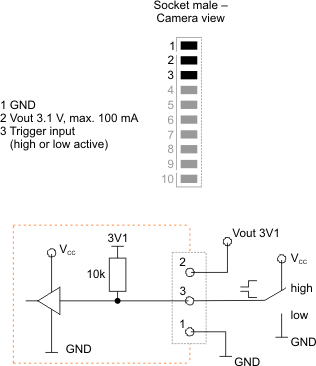

Fig. 619: Wiring of the digital input (trigger)

Fig. 619: Wiring of the digital input (trigger)
