Digital input specifications



Min.

Max.



Level low

0

2

V

Level high

5

24

V

Voltage range

0

30

V

Trigger pulse width (edge)

100

-

µs

Trigger edge steepness

35



V/ms

Breakdown voltage



50

V

Input current

-

10

mA

For interpreting the trigger signal, either the rising or the falling edge can be used. The digital input is galvanically isolated using an optocoupler to protect the camera and the PC against surges. Only DC voltages may be applied to the digital input.

Digital input wiring

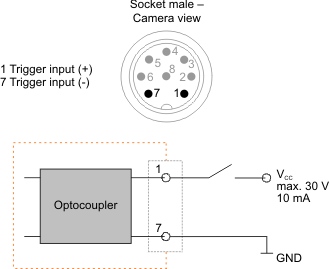

Fig. 640: GigE uEye RE PoE - Wiring of the trigger connector

Fig. 640: GigE uEye RE PoE - Wiring of the trigger connector
