Digital output specifications
|
Max. |
|
|---|---|---|
Output current (short-time) |
500 |
mA |
Output current (permanent) |
150 |
mA |
Output voltage |
30 |
V |
Breakdown voltage |
50 |
V |
Collector power dissipation |
125 |
mW |
The digital output is galvanically isolated using an optocoupler to protect the camera and the PC against surges. Only DC voltages may be applied to the digital output.
The output of the optocoupler can be used as an open collector or open emitter output. This means that the output signal can be connected to ground or to the supply voltage. The output signal is active if the collector-emitter switch is closed (software setting "Flash high active").
Digital output wiring
The following figures show examples of how the digital output is wired.

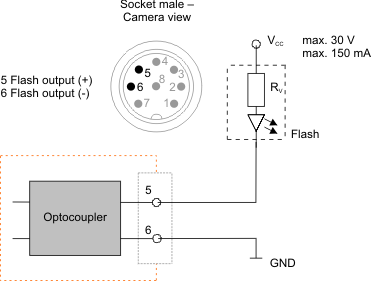

Fig. 641: GigE uEye RE PoE - Wiring of the digital output as an open collector output

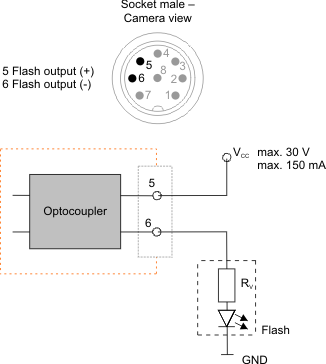

Fig. 642: GigE uEye RE PoE - Wiring of the digital output as an open emitter output
