General Purpose I/O wiring uEye SE USB 3.1 Gen 1

GPIO specifications

The two GPIOs (general purpose I/O) can be used as inputs or outputs. This selection is made by software using the corresponding SDK API functions. Please observe the following criteria:

	Symbol	Min.	Typ.	Max.	Unit
IO voltage range	VCCIO	0	-	3.3	V
Input high range	VIH	2.0	-	3.3	V
Input low range	VIL	0	-	0.8	V
Input leakage current	II	-	-	5	µA
Output high range	VOH	3.2	-	3.3	V
Output low range	VOL	-	0	0.2	V
Output current high	IOH	-	-	4	mA
Output current low	IOL	-4	-	-	mA

hint_notice

NOTICE! The General Purpose I/Os are not potential-free and have no protective circuit. Faulty wiring (overvoltage, undervoltage) can result in a damage in the electronics.

GPIO wiring as input

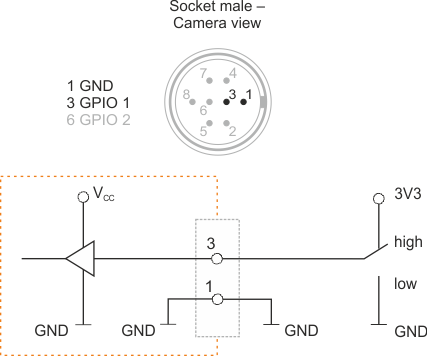

Fig. 367: GPIO input

GPIO wiring as output

Fig. 368: GPIO output (1)

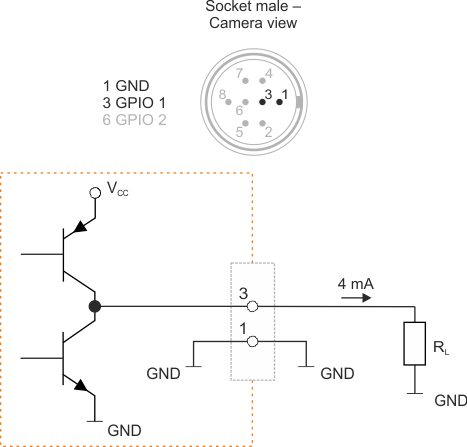

Fig. 369: GPIO output (2)
