Digital output specifications



Symbol

Min.

Typ.

Max.

Unit

Recommended supply voltage

VCC

-

-

30

V

Collector-emitter saturation voltage

VCE(SAT)

0.03

-

0.15

V

Collector-emitter breakdown voltage

V(BR)CE

50

-

-

V

Collector current continuous

IC

-

-

150

mA

The digital output is galvanically isolated using an optocoupler to protect the camera and the PC against surges. Only DC voltages may be applied to the digital output.

The output of the optocoupler can be used as an open collector or open emitter output. This means that the output signal can be connected to ground or to the supply voltage. The output signal is active if the collector-emitter switch is closed (software setting "Flash high active").

Digital output wiring

The following figures show examples of how the digital output is wired.

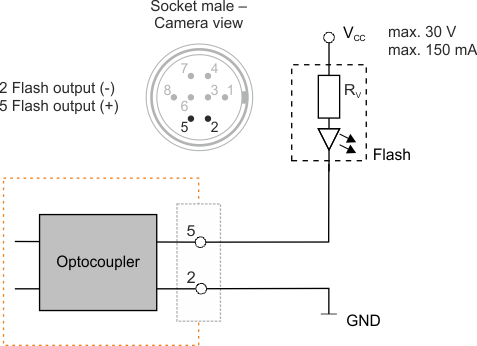

Fig. 365: Wiring of the digital output as an open collector output

Fig. 365: Wiring of the digital output as an open collector output

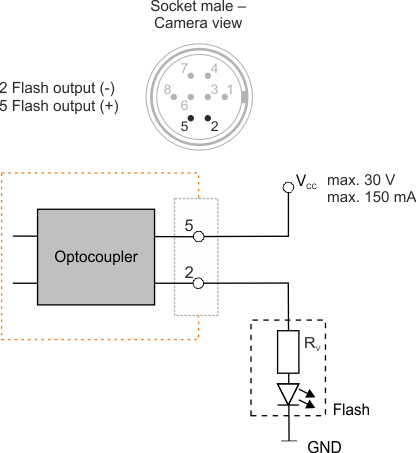

Fig. 366: Wiring of the digital output as an open emitter output

Fig. 366: Wiring of the digital output as an open emitter output
