Trigger input wiring USB uEye LE (PCB version)

Scroll Previous Top Next More

Digital input specifications



Min.

Max.



Level low

0

0.8

V

Level high

2.0



V

Voltage range

0

5.25

V

Trigger pulse width (edge)

Logic input

µs

Trigger edge steepness

Logic input

V/ms

Breakdown voltage

not applicable (no optocoupler)

V

Input current



4

mA

hint_notice

NOTICE! The digital input of the USB uEye LE is not potential-free and has no protective circuits.

Due to hardware limitations, the USB uEye LE can only be triggered on the falling edge. The models UI-122xLE Rev. 2 and UI-154xLE Rev. 2 can be triggered on both the rising and falling edges.

Internal supply voltage by sensor type

3.0 V

3.1 V

3.3 V

UI-148xLE

UI-149xLE

UI-155xLE

UI-158xLE

UI-164xLE

UI-122xLE

UI-124xLE

UI-125xLE

UI-146xLE

UI-154xLE

Digital input wiring

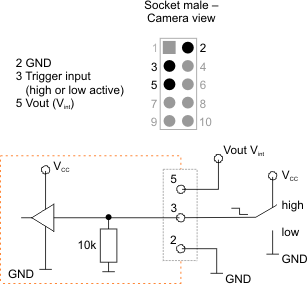

Fig. 488: USB uEye LE PCB version - Wiring of the digital input

Fig. 488: USB uEye LE PCB version - Wiring of the digital input
