Digital output specifications

USB board revision

1.2

2.0 or higher





Max.

Max.



Output current (short-time)

50

500

mA

Output current (permanent)

15

150

mA

Output voltage

30

30

V

Breakdown voltage

50

50

V

Collector power dissipation

100

125

mW

hint_info

For information on how to determine the USB board revision, please refer to the USB uEye SE driver compatibility chapter.

The digital output is galvanically isolated using an optocoupler to protect the camera and the PC against surges. Only DC voltages may be applied to the digital output.

The output of the optocoupler can be used as an open collector or open emitter output. This means that the output signal can be connected to ground or to the supply voltage. The output signal is active if the collector-emitter switch is closed (software setting "Flash high active").

Digital output wiring

The following figures show examples of how the digital output is wired.

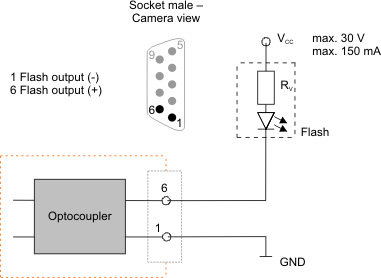

Fig. 547: Wiring of the digital output as an open collector output (rev. 2.0)

Fig. 547: Wiring of the digital output as an open collector output (rev. 2.0)

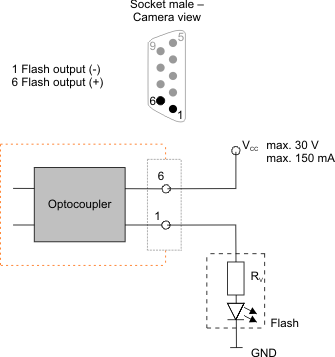

Fig. 548: Wiring of the digital output as an open emitter output (rev. 2.0)

Fig. 548: Wiring of the digital output as an open emitter output (rev. 2.0)

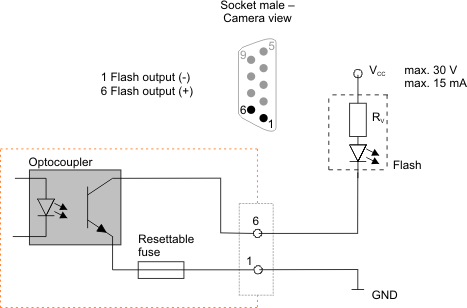

Fig. 549: Wiring of the digital output as an open collector output (rev. 1.2)

Fig. 549: Wiring of the digital output as an open collector output (rev. 1.2)

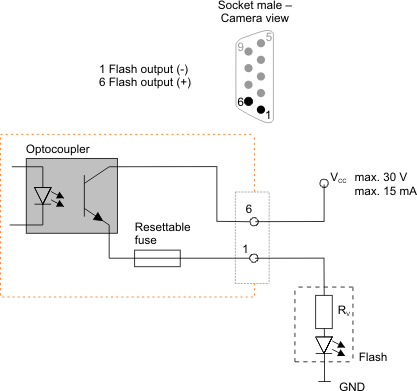

Fig. 550: Wiring of the digital output as an open emitter output (rev. 1.2)

Fig. 550: Wiring of the digital output as an open emitter output (rev. 1.2)
