Digital input specifications

USB board revision

1.2

2.0 or higher





Min.

Max.

Min.

Max.



Level low

0

2

0

2

V

Level high

9

24

5

24

V

Voltage range

0

30

0

30

V

Trigger pulse width (edge)

100

-

100

-

µs

Trigger edge steepness

35



35



V/ms

Breakdown voltage



50



50

V

Input current

-

10

-

10

mA

hint_info

For information on how to determine the USB board revision, please refer to the USB uEye SE driver compatibility chapter.

For interpreting the trigger signal, either the rising or the falling edge can be used. The digital input is galvanically isolated using an optocoupler to protect the camera and the PC against surges. Only DC voltages may be applied to the digital input.

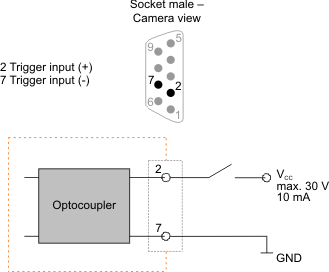

Digital input wiring

Fig. 546: Wiring of the trigger connector

Fig. 546: Wiring of the trigger connector
