Trigger input wiring USB 3 uEye LE (PCB version)

Scroll Previous Top Next More

Digital input specifications



Symbol

Min.

Typ.

Max.

Unit

Input high range

VIH

2.0

-

3.15/3.3 (see below)

V

Input low range

VIL

0

-

0.8

V

Input leakage current

II

-

-

5

µA

Trigger pulse width (edge)



Logic input

µs

Trigger edge steepness



Logic input

V/ms

hint_notice

NOTICE! The digital input of the USB 3 uEye LE is not potential-free and has no protective circuits.

Internal supply voltage by sensor type

3.15 V

3.3 V

UI-348xLE

UI-358xLE

UI-324xLE

UI-325xLE

UI-359xLE

Digital input wiring

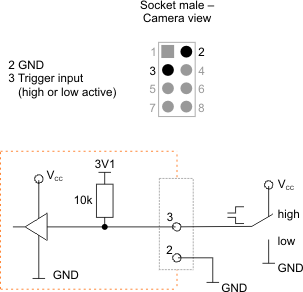

Fig. 423: Wiring of the digital input (trigger)

Fig. 423: Wiring of the digital input (trigger)
