Flash output wiring USB 3 uEye LE (PCB version)

Scroll Previous Top Next More

Digital output specifications



Symbol

Min.

Typ.

Max.

Unit

Supply voltage

VCC

0

-

3.0

V

Output high range

VOH

3.0/3.2

-

3.15/3.3 (see below)

V

Output low range

VOL

-

0

0.2

V

Output current high

IOH

-

-

4

mA

Output current low

IOL

-4

-

-

mA

hint_notice

NOTICE! The digital output of the USB 3 uEye LE is not potential-free and has no protective circuits. It is recommended to use the flash as low active.

Internal supply voltage by sensor type

3.15 V

3.3 V

UI-348xLE

UI-358xLE

UI-324xLE

UI-325xLE

UI-359xLE

Digital output wiring

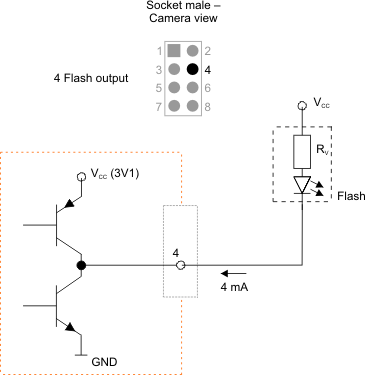

Fig. 424: Wiring of the digital output (flash) - inverted logic

Fig. 424: Wiring of the digital output (flash) - inverted logic

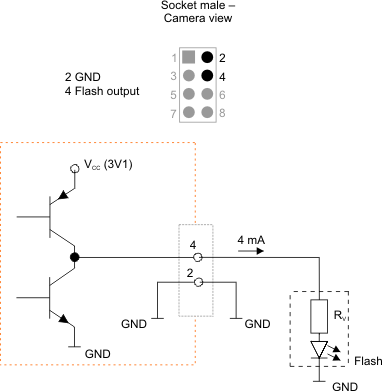

Fig. 425: Wiring of the digital output (flash) - non-inverted logic

Fig. 425: Wiring of the digital output (flash) - non-inverted logic
