Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter / global shutter / global start shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

SXGA

Resolution

1.31 MPix

Resolution (h x v)

1280 x 1024 pixels

Aspect ratio

5:4

ADC (analog-to-digital converter)

10 bits

Optical sensor class

1/1.8"

Optical area

6.784 mm x 5.427 mm

Optical sensor diagonal

8.69 mm (1/1.84")

Pixel size

5.30 µm, square

Micro lens shift

12°

Manufacturer

e2v

Sensor name, monochrome

EV76C560ABT

Sensor name, color

EV76C560ACT

Sensor name, NIR

EV76C661ABT

Special features

Automatic hotpixel correction in the sensor, see is_HotPixel()

Using multi AOI function

Using the sequence AOI mode

Sensor internal image scaler, downscaling by factor 1…4, see is_SetSensorScaler() and uEye Cockpit: Size

Allows to switch between global and rolling shutter readout, see is_DeviceFeature()

Monochrome models: line scan mode (see Using the line scan mode)

UI-324x/UI-524x only: IDS line scan ("AOI merge mode")

Trigger prescaler support (not all models)

Hardware gamma (see uEye Cockpit: Image)

Gain



Monochrome model (master gain)

4x

Color model (master/RGB)

4x/3.96x

Analog gain boost

2x

Supported image profiles

Format ID

Resolution

Name

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

14

640 x 360

VGA 16:9

15

400 x 240

WQVGA

16

352 x 288

CIF

17

288 x 352

CIF Portrait

18

320 x 240

QVGA

19

240 x 320

QVGA Portrait

24

768 x 576

CCIR

25

1280 x 1024

1.3M SXGA

27

1024 x 768

XGA

29

800 x 600

SVGA

Quantum efficiency

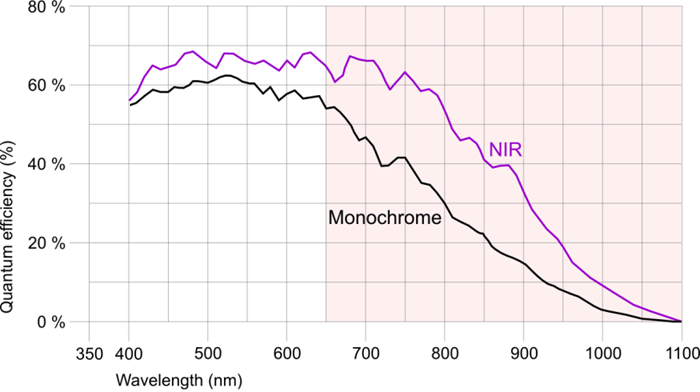

Fig. 210: UI-124x/UI-324x/UI-524x (monochrome and NIR)

Fig. 210: UI-124x/UI-324x/UI-524x (monochrome and NIR)

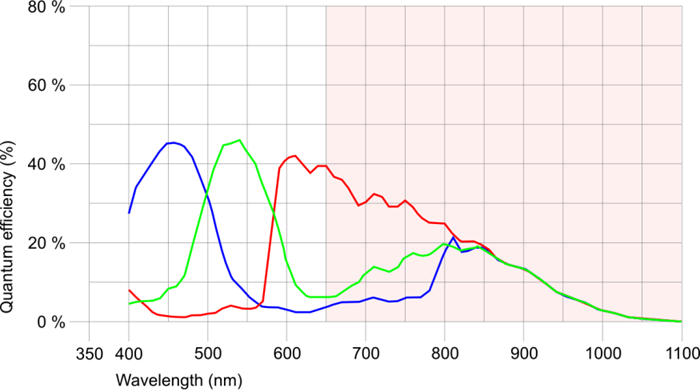

Fig. 211: UI-124x/UI-324x/UI-524x (color)

Fig. 211: UI-124x/UI-324x/UI-524x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
