Sensor specification

Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

12 MP

Resolution

12.34 MPix

Resolution (h x v)

4104 x 3006 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1.1"

Optical area

14.158 x 10.370 mm

Optical sensor diagonal

17.550 mm (1/1")

Pixel size

3.45 µm, square

Micro lens shift

0°

Manufacturer

Sony

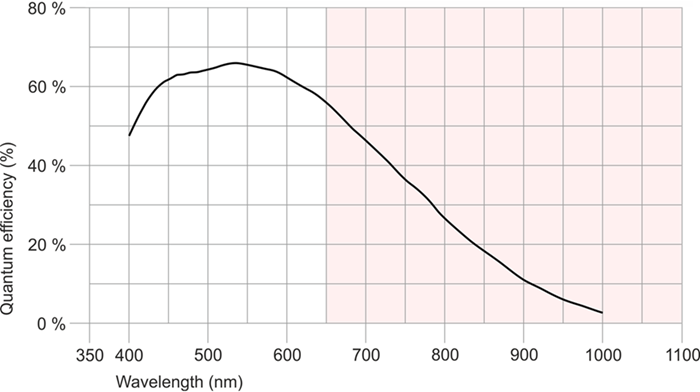

Sensor name, monochrome

IMX253LLR-C

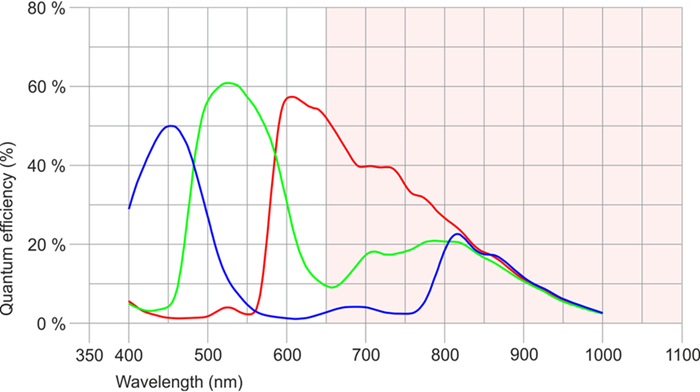

Sensor name, color

IMX253LQR-C

Special features

•IDS line scan ("AOI merge mode")

•Sensor source gain

•Using multi AOI function

•Supports overlap trigger mode for high frame rates in trigger mode

•Trigger prescaler support

Gain

Monochrome model (master gain)

24x

Color model (master gain/RGB)

24x/5x

Analog gain boost

24x
