Sensor specification

Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

1.6 MP

Resolution

1.57 MPix

Resolution (h x v)

1448 x 1086 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/3"

Optical area

4.995 x 3.746 mm

Optical sensor diagonal

6.244 mm (1/2.56")

Pixel size

3.45 µm, square

Micro lens shift

0°

Manufacturer

Sony

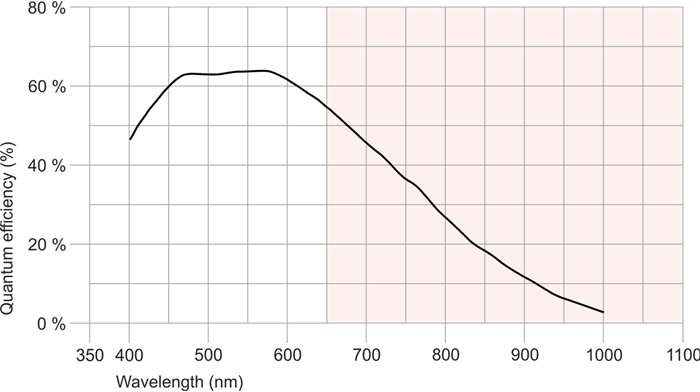

Sensor name, monochrome

IMX273LLR-C

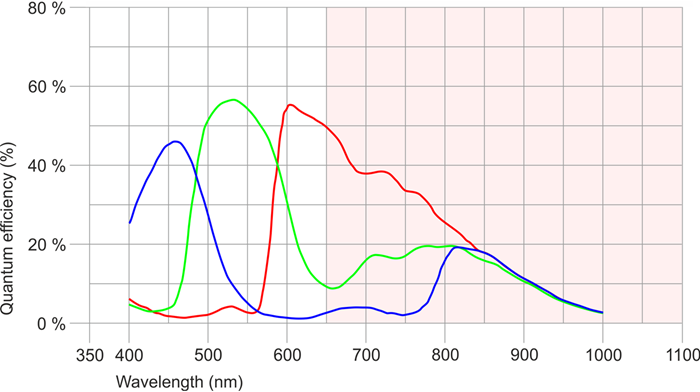

Sensor name, color

IMX273LQR-C

Special features

•IDS line scan ("AOI merge mode") - (not UI-304xLE)

•Sensor source gain

•Using multi AOI function

•Supports overlap trigger mode for high frame rates in trigger mode

•Trigger prescaler support

Gain

Monochrome model (master gain)

24x

Color model (master gain/RGB)

24x/5x

Analog gain boost

-
