Sensor specification

Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

2 MP

Resolution

2.35 MPix

Resolution (h x v)

1936 x 1216 pixels

Aspect ratio

16:10

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/1.2"

Optical area

11.345 x 7.126 mm

Optical sensor diagonal

13.395 mm (1/1.19")

Pixel size

5.86 µm, square

Micro lens shift

0°

Manufacturer

Sony

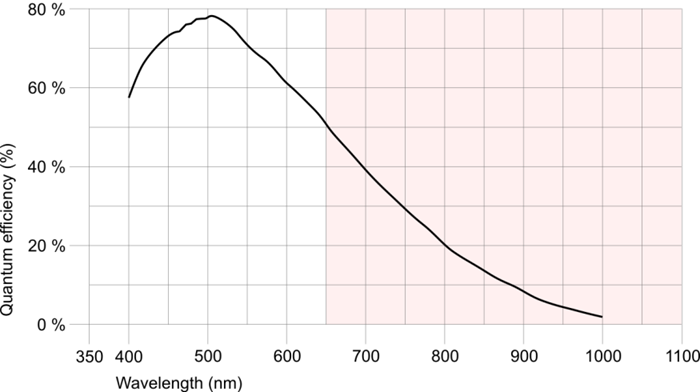

Sensor name, monochrome

IMX174LLJ-C

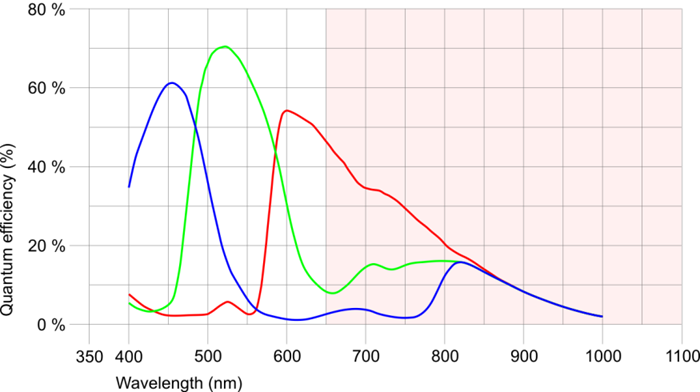

Sensor name, color

IMX174LQJ-C

Special features

•IDS line scan ("AOI merge mode")

•Using multi AOI function

•Supports overlap trigger mode for high frame rates in trigger mode

•Using the extended pixel clock

•Trigger prescaler support

Gain

Monochrome model (master gain)

24x

Color model (master gain/RGB)

24x/4x

Analog gain boost

4x
