Sensor specification

Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

3 MP

Resolution

3.15 MPix

Resolution (h x v)

2056 x 1542 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/1.8"

Optical area

7.093 x 5.320 mm

Optical sensor diagonal

8.864 mm (1/1.81")

Pixel size

3.45 µm, square

Micro lens shift

0°

Manufacturer

Sony

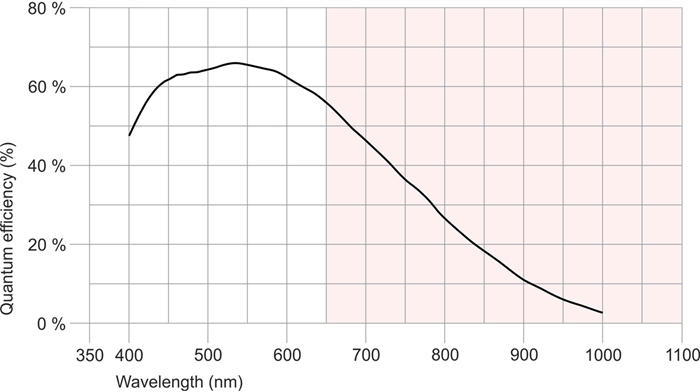

Sensor name, monochrome

IMX252LLR-C

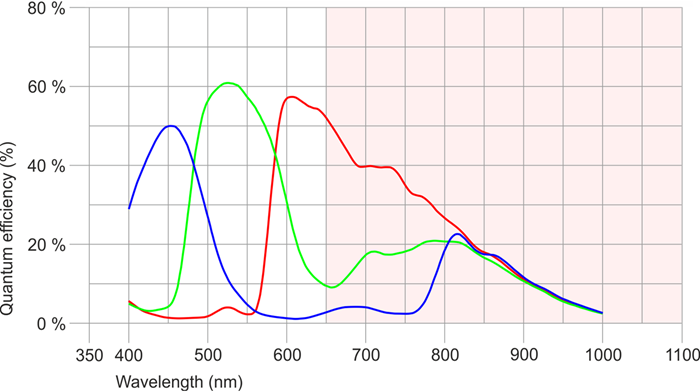

Sensor name, color

IMX252LQR-C

Special features

•IDS line scan ("AOI merge mode")

•Using multi AOI function

•Supports overlap trigger mode for high frame rates in trigger mode

•Sensor source gain

•Trigger prescaler support

Gain

Monochrome model (master gain)

24x

Color model (master gain/RGB)

24x/5x

Analog gain boost

24x
