Sensor specification

Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

9 MP

Resolution

8.92 MPix

Resolution (h x v)

4104 x 2174 pixels

Aspect ratio

17:9

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1"

Optical area

14.158 x 7.500 mm

Optical sensor diagonal

16.022 mm (1/1")

Pixel size

3.45 µm, square

Micro lens shift

0°

Manufacturer

Sony

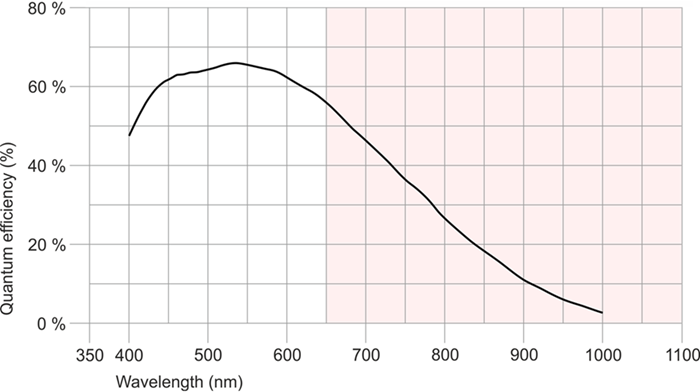

Sensor name, monochrome

IMX255LLR-C

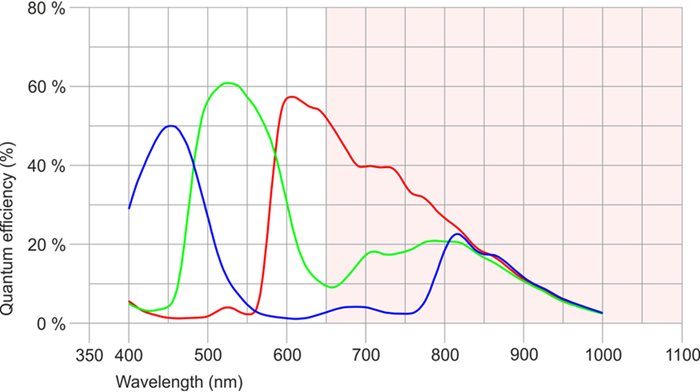

Sensor name, color

IMX255LQR-C

Special features

•IDS line scan ("AOI merge mode")

•Using multi AOI function

•Sensor source gain

•Supports overlap trigger mode for high frame rates in trigger mode

•Trigger prescaler support

Gain

Monochrome model (master gain)

24x

Color model (master gain/RGB)

24x/5x

Analog gain boost

24x
