Sensor specification

Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

2 MP

Resolution

2.3 MPix

Resolution (h x v)

1920 x 1200 pixels

Aspect ratio

16:10

ADC (analog-to-digital converter)

10 bits

Optical sensor class

2/3"

Optical area

9.216 x 5.760 mm

Optical sensor diagonal

10.868 mm (1/1.47")

Pixel size

4.8 µm, square

Micro lens shift

2.7°

Manufacturer

onsemi

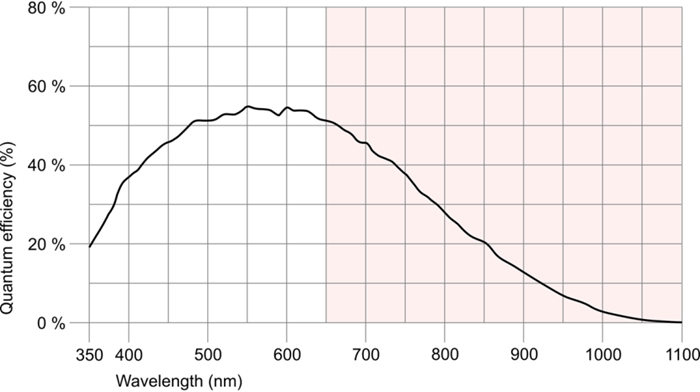

Sensor name, monochrome

NOIP1SN2000A-LTI

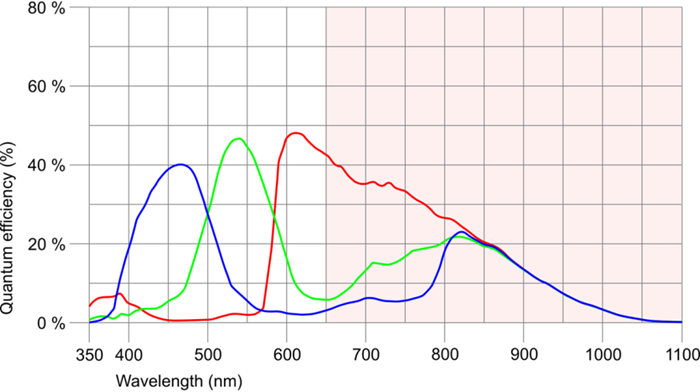

Sensor name, color

NOIP1SE2000A-LTI

Special features

•Supports overlap trigger mode for high frame rates in trigger mode

•Using the extended pixel clock

•IDS line scan ("AOI merge mode")

•Using multi AOI function

•Trigger prescaler support

•Sensor source gain

Gain

Monochrome model (master gain)

4x

Color model (master gain/RGB)

4x/4x

Analog gain boost

-
