Sensor specification |
|
Sensor type |
CMOS |
Shutter |
Global shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
12 MP |
Resolution |
12.34 MPix |
Resolution (h x v) |
4104 x 3006 pixels |
Aspect ratio |
4:3 |
12 bits |
|
Optical sensor class |
1.1" |
Optical area |
14.158 x 10.370 mm |
Optical sensor diagonal |
17.550 mm (1/0.91") |
Pixel size |
3.45 µm, square |
0° |
|
Manufacturer |
Sony |
Sensor name, monochrome |
IMX304LLR-C |
Sensor name, color |
IMX304LQR-C |
Special features |
•IDS line scan ("AOI merge mode") •Supports overlap trigger mode for high frame rates in trigger mode |
Gain |
|
Monochrome model (master gain) |
24x |
Color model (master gain/RGB) |
24x/5x |
Analog gain boost |
24x |
Supported image profiles
Format ID |
Resolution |
Name |
---|---|---|
1 |
3264 x 2448 |
8M |
2 |
3264 x 2176 |
8M 3:2 |
3 |
3264 x 1836 |
8M 16:9 |
4 |
2592 x 1944 |
5M |
5 |
2048 x 1536 |
3M |
6 |
1920 x 1080 |
Full HD 16:9 |
7 |
1632 x 1224 |
2M |
8 |
1280 x 960 |
1.2M 4:3 |
9 |
1280 x 720 |
HD 16:9 |
11 |
960 x 480 |
WVGA 2:1 |
13 |
640 x 480 |
VGA |
20 |
1600 x 1200 |
UXGA |
21 |
3840 x 2748 |
10M |
23 |
2560 x 1920 |
5M |
24 |
768 x 576 |
CCIR |
25 |
1280 x 1024 |
1.3M SXGA |
26 |
2448 x 2048 |
5M |
27 |
1024 x 768 |
XGA |
28 |
1024 x 1024 |
1M |
29 |
800 x 600 |
SVGA |
30 |
1360 x 1024 |
1.4M 4:3 |
35 |
1920 x 1200 |
WUXGA |
36 |
Sensormaximum (4104 x 3006) |
|
37 |
4096 x 2304 |
4K Cinema |
38 |
3840 x 2160 |
Ultra HD |
40 |
2048 x 2048 |
4M |
41 |
3072 x 2048 |
6M |
Quantum efficiency

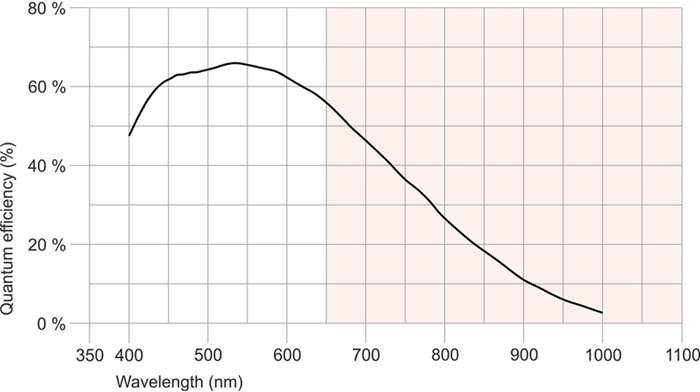

Fig. 264: UI-320x/UI-520x (monochrome)

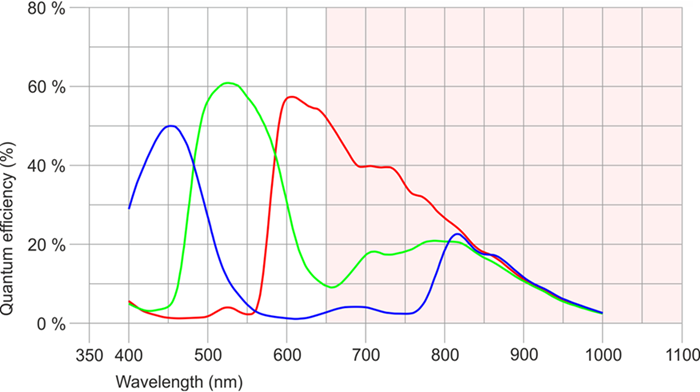

Fig. 265: UI-320x/UI-520x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
