Sensor specification

UI-313xCP Rev. 2/UI-513xCP Rev. 2

UI-313xLE

Sensor type

CMOS

CMOS

Shutter

Global shutter

Global shutter

Characteristic

Linear

Linear

Readout mode

Progressive scan

Progressive scan

Resolution class

0.5 MP

0.5 MP

Resolution

0.48 MPix

0.49 MPix

Resolution (h x v)

800 x 600 pixels

808 x 608 pixels

Aspect ratio

4:3

4:3

ADC (analog-to-digital converter)

10 bits

10 bits

Optical sensor class

1/3.6"

1/3.6"

Optical area

3.840 x 2.880 mm

3.875 x 2.915 mm

Optical sensor diagonal

4.800 mm (1/3.33")

4.850 mm (1/3.3")

Pixel size

4.8 µm, square

4.8 µm, square

Micro lens shift

2.7°

1.65°

Manufacturer

onsemi

onsemi

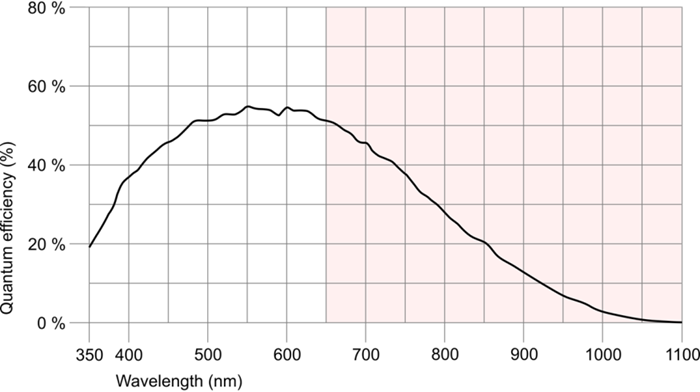

Sensor name, monochrome

NOIP1SN0500A-QDI

NOIP1SN0480A-SDI

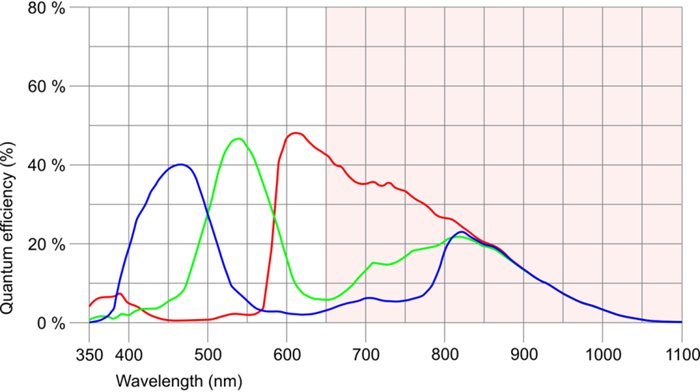

Sensor name, color

NOIP1SE0500A-QDI

NOIP1SE0480A-SDI

Special features

•Supports overlap trigger mode for high frame rates in trigger mode

•UI-313x only: Using the extended pixel clock

•IDS line scan ("AOI merge mode")

•Using multi AOI function

•Trigger prescaler support

•Sensor source gain

•HDR mode with kneepoints for extended dynamic range (see Kneepoint HDR sensors chapter)

•Supports overlap trigger mode for high frame rates in trigger mode

•Using multi AOI function

•Sensor source gain

Gain

Monochrome model (master gain)

4x

4x

Color model (master gain/RGB)

4x/4x

4x/4x

Analog gain boost

-

-
