Sensor specification

Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

1.x MP

Resolution

1.31 MPix

Resolution (h x v)

1280 x 1024 pixels

Aspect ratio

5:4

ADC (analog-to-digital converter)

10 bits

Optical sensor class

1/2"

Optical area

6.144 x 4.915 mm

Optical sensor diagonal

7.868 mm (1/2.03")

Pixel size

4.8 µm, square

Micro lens shift

2.7°

Manufacturer

onsemi

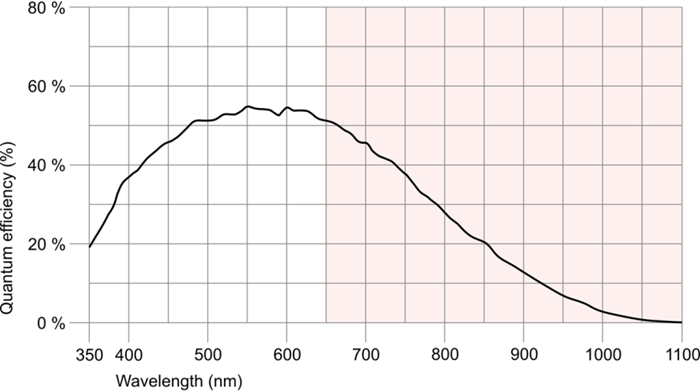

Sensor name, monochrome

NOIP1SN1300A-QDI

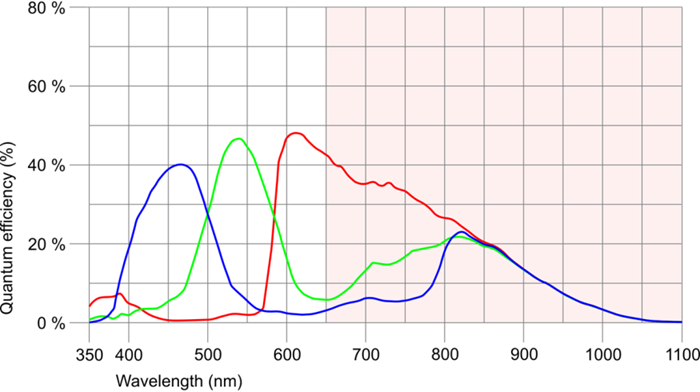

Sensor name, color

NOIP1SE1300A-QDI

Special features

•Supports overlap trigger mode for high frame rates in trigger mode

•Using the extended pixel clock

•IDS line scan ("AOI merge mode")

•Using multi AOI function

•Trigger prescaler support

•Sensor source gain

•HDR mode with kneepoints for extended dynamic range (see Kneepoint HDR sensors chapter)

Gain

Monochrome model (master gain)

4x

Color model (master gain/RGB)

4x/4x

Analog gain boost

-
