Sensor specification |
|
Sensor type |
CMOS |
Shutter |
Global shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
5 MP |
Resolution |
5.31 MPix |
Resolution (h x v) |
2592 x 2048 pixels |
Aspect ratio |
5:4 |
10 bits |
|
Optical sensor class |
1" |
Optical area |
12.441 x 9.830 mm |
Optical sensor diagonal |
15.868 mm (1/1.01") |
Pixel size |
4.8 µm, square |
2.7° |
|
Manufacturer |
onsemi |
Sensor name, monochrome |
NOIP1SN5000A-LTI |
Sensor name, color |
NOIP1SE5000A-LTI |
Special features |
•Supports overlap trigger mode for high frame rates in trigger mode •Using the extended pixel clock |
Gain |
|
Monochrome model (master gain) |
4x |
Color model (master gain/RGB) |
4x/4x |
Analog gain boost |
- |
Supported image profiles
Format ID |
Resolution |
Name |
---|---|---|
6 |
1920 x 1080 |
Full HD 16:9 |
8 |
1280 x 960 |
1.2M 4:3 |
9 |
1280 x 720 |
HD 16:9 |
13 |
640 x 480 |
VGA |
18 |
320 x 240 |
QVGA |
20 |
1600 x 1200 |
UXGA |
25 |
1280 x 1024 |
1.3M SXGA |
27 |
1024 x 768 |
XGA |
28 |
1024 x 1024 |
1M |
29 |
800 x 600 |
SVGA |
35 |
1920 x 1200 |
WUXGA |
36 |
Sensor maximum (2592 x 2048) |
|
40 |
2048 x 2048 |
4M |
Quantum efficiency

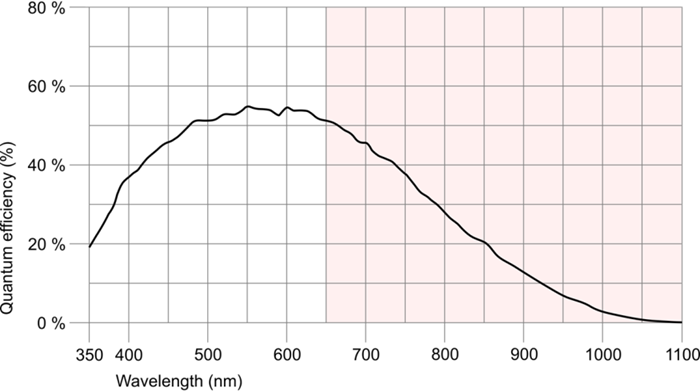

Fig. 261: UI-318x (monochrome)

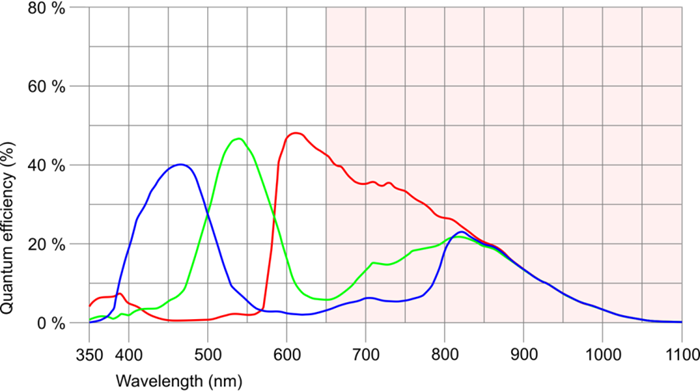

Fig. 262: UI-318x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
