Sensor specification



Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

4 MP

Resolution

4.19 MPix

Resolution (h x v)

2048 x 2048 pixels

Aspect ratio

1:1

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1"

Optical area

11.264 x 11.264 mm

Optical sensor diagonal

15.93 mm (1/1.01")

Pixel size

5.50 µm, square

Micro lens shift

Manufacturer

CMOSIS

Sensor name, monochrome

CMV4000-3E5M

Sensor name, color

CMV4000-3E5C

Sensor name, NIR

CMV4000-3E12M (upon request)

Special features

Using multi AOI function

IDS line scan ("AOI merge mode")

Supports overlap trigger mode for high frame rates in trigger mode

Dual Exposure (Interleave HDR)

Trigger prescaler support

Gain



Monochrome model (master gain)

4.0x

Color model (master/RGB)

4.0x/4.0x

Analog gain boost

2.0x

Supported image profiles

Format ID

Resolution

Name

5

2048 x 1536

3M

6

1920 x 1080

Full HD 16:9

20

1600 x 1200

UXGA

25

1280 x 1024

1.3M SXGA

27

1024 x 768

XGA

28

1024 x 1024

1M

Quantum efficiency

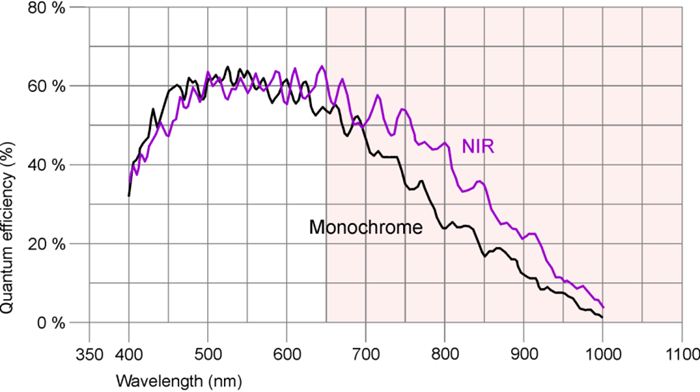

Fig. 282: UI-337x/UI-537x (monochrome and NIR)

Fig. 282: UI-337x/UI-537x (monochrome and NIR)

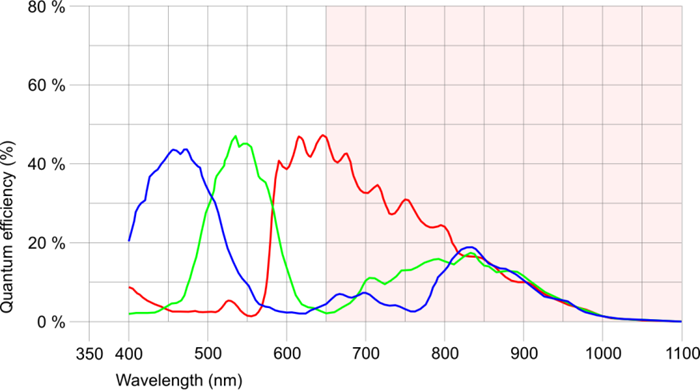

Fig. 283: UI-337x/UI-537x (color)

Fig. 283: UI-337x/UI-537x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
