AT Sensors CS 3D Sensors / Laser Profilers
High Peformance 3D Sensors

AT Sensors CS Series high peformance 3D Sensors / Laser Profilers are factory calibrated 3D sensors built with a rugged, compact design and IP67 protection for industrial 3D imaging applications. These 3D sensors / laser profilers produce superb 3D images due to their high dynamic range and extraordinary high-speed and high-precision resolution.

CS compact 3D sensors / laser profilers can achieve profile resolution up to 4096 points per profile, up to 5 µm resolution X and 0.2 µm resolution Z, and profile speed up to 200 kHz. By defining detector regions with up to 4 regions, profile speeds with 3D data rates up to 128 million 3D points per second can be attained.

AT Sensors 3D sensors are ideal for inspection applications (battery, logistics & packaging, food & beverage, electronics, materials, semiconductors, etc.), automotive, meteorology, and numerous other 3D imaging industrial machine vision applications.

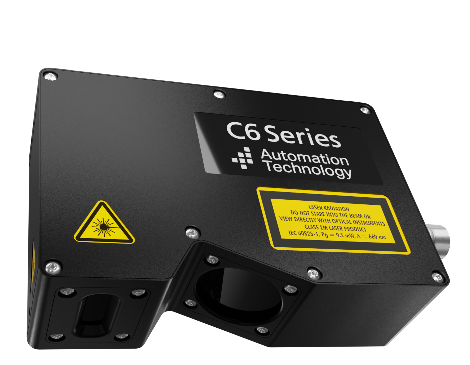

Side view of the AT Sensors CS 3D Sensors / Laser Profiler

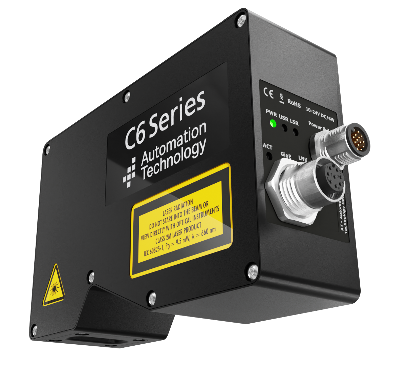

Rear view showing connectors of the AT Sensors CS 3D Sensors / Laser Profiler

What makes AT Sensors' CS 3D sensors / laser profilers unique and stand out in the field of 3D sensors / laser profilers and 3D imaging are their features which include:

Factory calibrated 3D sensors
Advanced 3D technology (HDR-3D)
Extremely high-speed and high-precision resolution
Profile speeds up to 200 kHz with 3D data rates up to 128 million 3D points per second
Profile resolution up to 4096 points/profile, resolution X: up to 5 µm, and resolution Z: up to 0.2 µm
Supports for GigE Vision / GenICam 3D standard at 1 Gbit/s transmissions
Available in 4 different resolutions (1280, 2040, 3070, 4090)
MultiPart enables parallel output of different features (e.g. range, reflectance, scatter) at maximum profile speed with optimized pixel formats
MultiPeak enables output of up to four different peaks for even more robust 3D data and for scanning transparent or shiny objects
Region search and tracking automatically finds and tracks the laser line in the detector image

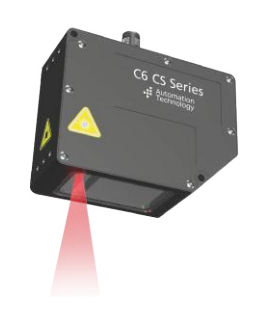

AT Sensors CS 3D Sensors / Laser Profiler - laser example

CS 3D sensors / laser profilers are available in a number of configurations with a wide range of laser configurations, and compact sensors with a Field of View (FOV) from 7mm to 1290 mm. They are available in 4 different sensor resolutions (1280, 2040, 3070, 4090).

For a customized 3D sensor / laser profiler that is tailored specifically for your 3D imaging application requirements, see AT Sensors' MCS Modular Compact 3D Sensor / Laser Profilers.

AT Sensors offers a wide selection of 3D sensor laser profilers and configurations. See the AT Sensors 3D sensor comparision charts for additional information, or contact us.

AT Sensors 3D Sensors / Laser Profilers Brochure

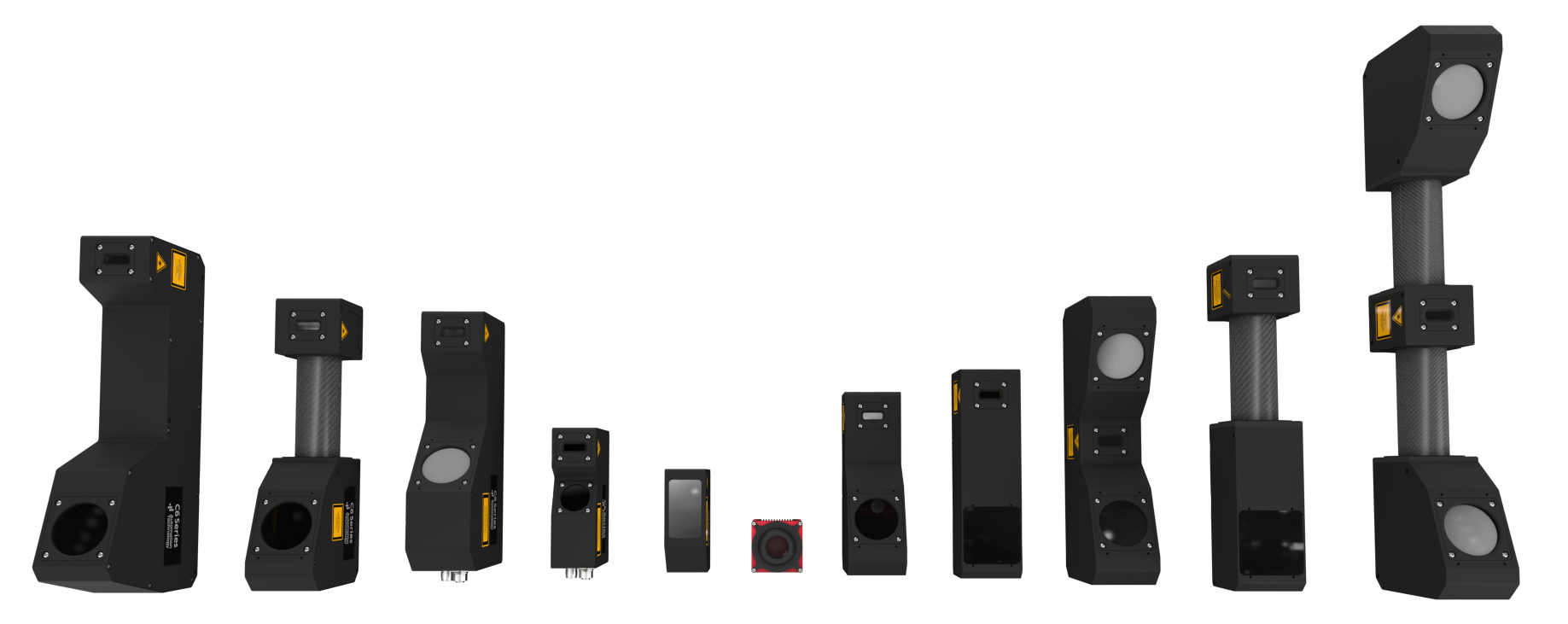

AT Sensors CS 3D Sensors / Laser Profiler - all models

CS Series 3D Sensors Models

Get Quote	Part Number	Sensor Model	Working Distance (mm)	Z-Range (mm)	X-FOV (mm)	X-Res (µm)	Z-Res (µm)	Wavelength	Laser Class

202209089	C6-1280-CS-14-120-197-405-2M	197	80	118	92	3.2	405	2M
202209091	C6-1280-CS-14-120-197-405-3B	197	80	118	92	3.2	405	3B
202209090	C6-1280-CS-14-120-197-405-3R	197	80	118	92	3.2	405	3R
202209092	C6-1280-CS-14-120-197-660-2M	197	80	118	92	3.2	660	2M
202209094	C6-1280-CS-14-120-197-660-3B	197	80	118	92	3.2	660	3B
202209093	C6-1280-CS-14-120-197-660-3R	197	80	118	92	3.2	660	3R
202209083	C6-1280-CS-14-76-197-405-2M	197	80	75	58	2.1	405	2M
202209085	C6-1280-CS-14-76-197-405-3B	197	80	75	58	2.3	405	3B
202209084	C6-1280-CS-14-76-197-405-3R	197	80	75	58	2.1	405	3R
202209086	C6-1280-CS-14-76-197-660-2M	197	80	75	58	2.1	660	2M
202209088	C6-1280-CS-14-76-197-660-3B	197	80	75	58	2.1	660	3B
202209087	C6-1280-CS-14-76-197-660-3R	197	80	75	58	2.1	660	3R
202209029	C6-1280-CS-21-40-90-405-2M	90	46	39	30	1.3	405	2M
202209031	C6-1280-CS-21-40-90-405-3B	90	46	39	30	0.6	405	3B
202209030	C6-1280-CS-21-40-90-405-3R	90	46	39	30	0.9	405	3R
202209071	C6-1280-CS-23-29-106-405-2M	106	35	28	22	0.6	405	2M
202209073	C6-1280-CS-23-29-106-405-3B	106	35	28	22	0.6	405	3B
202209072	C6-1280-CS-23-29-106-405-3R	106	40	28	21	0.7	405	3R
202209074	C6-1280-CS-23-29-106-660-2M	106	35	28	22	0.6	660	2M
202209076	C6-1280-CS-23-29-106-660-3B	106	35	28	22	0.6	660	3B
202209088	C6-1280-CS-14-76-197-660-3B	197	80	75	58	2.1	660	3B
202209087	C6-1280-CS-14-76-197-660-3R	197	80	75	58	2.1	660	3R
202209029	C6-1280-CS-21-40-90-405-2M	90	46	39	30	1.3	405	2M
202209031	C6-1280-CS-21-40-90-405-3B	90	46	39	30	0.6	405	3B
202209030	C6-1280-CS-21-40-90-405-3R	90	46	39	30	0.9	405	3R
202209071	C6-1280-CS-23-29-106-405-2M	106	35	28	22	0.6	405	2M
202209073	C6-1280-CS-23-29-106-405-3B	106	35	28	22	0.6	405	3B
202209072	C6-1280-CS-23-29-106-405-3R	106	40	28	21	0.7	405	3R
202209074	C6-1280-CS-23-29-106-660-2M	106	35	28	22	0.6	660	2M
202209076	C6-1280-CS-23-29-106-660-3B	106	35	28	22	0.6	660	3B
202209062	C6-1280-CS-23-75-106-660-2M	106	40	79	62	1.5	660	2M
202209064	C6-1280-CS-23-75-106-660-3B	106	40	79	62	1.3	660	3B
202209063	C6-1280-CS-23-75-106-660-3R	106	40	74	58	1.6	660	3R
202209026	C6-1280-CS-25-20-72-405-2M	72	19	18	14	0.3	405	2M
202209027	C6-1280-CS-25-20-72-405-3R	72	19	18	14	0.3	405	3R
202209028	C6-1280-CS-25-20-72-450-3B	72	20	18	14	0.4	450	3B
202209116	C6-1280-CS-30-248-400-405-2M	400	200	247	193	3.8	405	2M
202209118	C6-1280-CS-30-248-400-405-3B	400	200	247	193	3.8	405	3B
202209117	C6-1280-CS-30-248-400-405-3R	400	300	248	194	4.9	405	3R
202209119	C6-1280-CS-30-248-400-660-2M	400	200	247	193	3.8	660	2M
202209121	C6-1280-CS-30-248-400-660-3B	400	300	249	194	4.3	660	3B
202209120	C6-1280-CS-30-248-400-660-3R	400	300	249	195	4.9	660	3R
202209023	C6-1280-CS-35-12-31-405-2M	31	8	12	9	0.3	405	2M
202209024	C6-1280-CS-35-12-31-405-3R	31	8	12	9	0.3	405	3R
202209025	C6-1280-CS-35-12-31-450-3B	31	8	12	9	0.2	450	3B
202209020	C6-1280-CS-35-7-31-405-2M	31	3	6	5	0.2	405	2M
202209021	C6-1280-CS-35-7-31-405-3R	31	3	6	5	0.1	405	3R
202209022	C6-1280-CS-35-7-31-450-3B	31	3	6	5	0.1	450	3B
202209041	C6-2040-CS-14-100-197-405-2M	197	110	100	49	4	405	2M
202209043	C6-2040-CS-14-100-197-405-3B	197	110	100	49	3	405	3B
202209042	C6-2040-CS-14-100-197-405-3R	197	110	100	49	3.7	405	3R
202209044	C6-2040-CS-14-100-197-660-2M	197	110	100	49	2.4	660	2M
202209046	C6-2040-CS-14-100-197-660-3B	197	110	100	49	2.5	660	3B
202209045	C6-2040-CS-14-100-197-660-3R	197	110	100	49	2.4	660	3R
202209077	C6-2040-CS-14-160-197-405-2M	197	120	163	79	6.8	405	2M
202209079	C6-2040-CS-14-160-197-405-3B	197	120	164	80	3.6	405	3B
202209078	C6-2040-CS-14-160-197-405-3R	197	120	163	79	3.7	405	3R
202209080	C6-2040-CS-14-160-197-660-2M	197	120	164	80	4.3	660	2M
202209082	C6-2040-CS-14-160-197-660-3B	197	120	164	80	4.1	660	3B
202209081	C6-2040-CS-14-160-197-660-3R	197	120	164	80	3.6	660	3R
202209126	C6-2040-CS-15-1290-920-405-3B	920	1090	1296	633	78.9	405	3B
202209125	C6-2040-CS-15-1290-920-405-3R	920	1090	1296	633	78.9	405	3R
202209127	C6-2040-CS-15-1290-920-660-3R	920	1089	1301	635	63.5	660	3R
202209123	C6-2040-CS-18-1060-744-405-3B	744	799	1062	518	32.4	405	3B
202209122	C6-2040-CS-18-1060-744-405-3R	744	799	1070	522	34.6	405	3R
202209124	C6-2040-CS-18-1060-744-660-3R	744	799	1067	521	36.9	660	3R
202209032	C6-2040-CS-21-53-90-405-2M	90	46	52	25	0.9	405	2M
202209034	C6-2040-CS-21-53-90-405-3B	90	46	52	25	1.3	405	3B
202209033	C6-2040-CS-21-53-90-405-3R	90	46	52	25	1	405	3R
202209035	C6-2040-CS-23-100-106-405-2M	106	48	106	51	1.2	405	2M
202209037	C6-2040-CS-23-100-106-405-3B	106	60	100	49	1.4	405	3B
202209036	C6-2040-CS-23-100-106-405-3R	106	60	103	50	1.7	405	3R
202209038	C6-2040-CS-23-100-106-660-2M	106	60	106	52	1.3	660	2M
202209040	C6-2040-CS-23-100-106-660-3B	106	60	100	49	1.4	660	3B
202209039	C6-2040-CS-23-100-106-660-3R	106	60	100	49	1.4	660	3R
202209053	C6-2040-CS-23-38-106-405-2M	106	30	37	18	1	405	2M
202209055	C6-2040-CS-23-38-106-405-3B	106	30	37	18	0.8	405	3B
202209054	C6-2040-CS-23-38-106-405-3R	106	30	37	18	0.7	405	3R
202209056	C6-2040-CS-23-38-106-660-2M	106	30	37	18	0.8	660	2M
202209058	C6-2040-CS-23-38-106-660-3B	106	30	37	18	0.8	660	3B
202209057	C6-2040-CS-23-38-106-660-3R	106	30	37	18	0.8	660	3R
202209047	C6-2040-CS-23-63-106-405-2M	106	30	37	18	0.8	405	2M
202209049	C6-2040-CS-23-63-106-405-3B	106	40	62	30	0.9	405	3B
202209048	C6-2040-CS-23-63-106-405-3R	106	40	63	30	1.4	405	3R
202209050	C6-2040-CS-23-63-106-660-2M	106	40	63	30	1	660	2M
202209052	C6-2040-CS-23-63-106-660-3B	106	40	63	30	1	660	3B
202209051	C6-2040-CS-23-63-106-660-3R	106	40	63	30	1	660	3R
202209110	C6-2040-CS-30-330-400-405-2M	400	200	328	160	5	405	2M
202209112	C6-2040-CS-30-330-400-405-3B	400	200	329	161	4.3	405	3B
202209111	C6-2040-CS-30-330-400-405-3R	400	300	328	160	6.5	405	3R
202209113	C6-2040-CS-30-330-400-660-2M	400	285	331	162	6.3	660	2M
202209114	C6-2040-CS-30-330-400-660-3R	400	300	332	162	5.1	660	3R
202209097	C6-4090-CS-30-182-400-405-2M	400	150	181	44	1.7	405	2M
202209099	C6-4090-CS-30-182-400-405-3B	400	150	181	44	1.7	405	3B
202209098	C6-4090-CS-30-182-400-405-3R	400	150	180	44	2	405	3R
202209100	C6-4090-CS-30-182-400-660-2M	400	150	181	44	1.7	660	2M
202209102	C6-4090-CS-30-182-400-660-3B	400	150	181	44	1.6	660	3B
202209101	C6-4090-CS-30-182-400-660-3R	400	150	181	44	1.7	660	3R
202209103	C6-4090-CS-30-288-400-405-2M	400	250	290	70	2.6	405	2M
202209105	C6-4090-CS-30-288-400-405-3B	400	250	290	70	2.1	405	3B
202209104	C6-4090-CS-30-288-400-405-3R	400	250	290	70	2.6	405	3R
202209106	C6-4090-CS-30-288-400-660-2M	400	250	290	70	2.1	660	2M
202209108	C6-4090-CS-30-288-400-660-3B	400	250	291	71	2.2	660	3B
202209107	C6-4090-CS-30-288-400-660-3R	400	251	291	71	2.7	660	3R
202209008	C6-4090-CS-39-145-172-405-2M	172	15	148	36	0.6	405	2M
202209013	C6-4090-CS-39-145-172-405-3B	172	15	148	36	0.6	405	3B
202209011	C6-4090-CS-39-145-172-405-3R	172	15	148	36	0.8	405	3R
202209015	C6-4090-CS-39-145-172-660-2M	172	0	148	36	0.7	660	2M
202209019	C6-4090-CS-39-145-172-660-3B	172	15	148	36	0.7	660	3B
202209017	C6-4090-CS-39-145-172-660-3R	172	0	148	36	0.7	660	3R
202209007	C6-4090-CS-39-82-172-405-2M	172	15	81	19	0.6	405	2M
202209012	C6-4090-CS-39-82-172-405-3B	172	15	81	19	0.5	405	3B
202209010	C6-4090-CS-39-82-172-405-3R	172	15	81	19	0.5	405	3R
202209014	C6-4090-CS-39-82-172-660-2M	172	15	81	19	0.5	660	2M
202209018	C6-4090-CS-39-82-172-660-3B	172	15	81	19	0.5	660	3B
202209016	C6-4090-CS-39-82-172-660-3R	172	15	81	19	0.5	660	3R

General Technical Data for CS Models

High dynamic range features	Multiple Slope Mode
3D algorithms	MAX, TRSH, COG, FIR PEAK
3D scan features	Automatic Region Tracking, Automatic Region Search, Multiple Regions, AutoStart
Connections	17 pin, M12 Power I/O 8pin, M12 Ethernet
Data interface	Gigabit Ethernet (1Gbit/s)
Standards	GigE Vision with GenICam
Temperature	Operation 0°C to +40°C Storage -20°C to +80°C
Protection class	IP67

Electrical specifications

Power consumption	Max. 15 Watt
Power supply sensor	10-24 V DC (max. 27 V DC)
Power supply laser	10-24 V DC

I/O specifications

Digital Input	2 electrial isolated inputs, +5V to +24V DC
Digital Output	2 electrical isolated outputs, +5 to +24V DC (max. 100 mA)
Encoder/Resolver Input	A+, A-, B+, B-, Z+, Z- High-Speed Triple RS-422 Receiver Max. input voltage +5V DC (TTL level)
