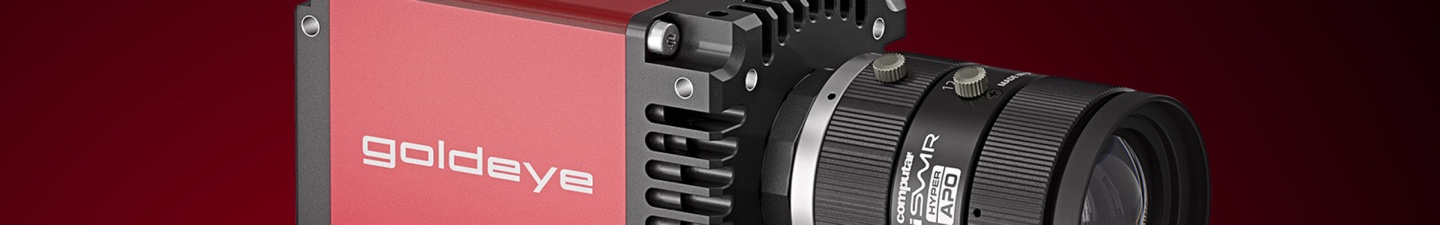

Alied Vision Goldeye SWIR camera

Allied Vision and Teledyne Dalsa Short Wave Infrared (SWIR) Cameras

1stVision has the SWIR cameras you’re looking to find, including the Alvium 1800 series and Goldeye series from Allied Vision, and Teledyne Dalsa’s SL-GA series. Allied Vision Goldeye SWIR cameras feature InGaAs detectors with GigE or Camera Link interfaces for applications in automotive, biomedical, healthcare, and telecom, as well as in agriculture and agro-food industries. Their TE cooled design reduces dark current and improves signal to noise ratios for contrast-rich and highly stable imaging performance. Allied Vision Alvium 1800 SWIR cameras offer USB and CSI interfaces and feature compact size as uncooled cameras, with frame rates to 344fps. Teledyne Dalsa SWIR cameras are available with GigE interfaces and line scan imaging suitable for continuous motion application.

Since SWIR cameras can image through glass, they can be used to control and predict quality in semiconductor inspection, as well as in the detection of diseases, chemicals, microbials, liquids, and biological contaminants.


Get Quote Manufacturer
Model Interface
Resolution
Bits
Frame Rate
Sensor
Format
Pixel
Color/Mono/NIR/UV
Scan Type
get a quote for this product Teledyne DALSA SL-GA-01K04A GigE 1024x1 14 40 DALSA Proprietary 12.8mm 12.5(h) 12.5(v) SWIR Line Scan
get a quote for this product Teledyne DALSA SL-GA-05H04A GigE 512x1 14 40 DALSA Proprietary 12.8mm 25(h) 25(v) SWIR Line Scan
get a quote for this product Allied Vision Alvium 1800 C-030 CSI-2 656x520 12 223 Sony IMX991 SenSWIR 1/4" 5(h) 5(v) SWIR Area Scan
get a quote for this product Allied Vision Alvium 1800 C-130 CSI-2 1296x1032 12 119 Sony IMX990 SenSWIR 1/2" 5(h) 5(v) SWIR Area Scan
get a quote for this product Allied Vision Alvium 1800 U-030 USB 3.0 656x520 12 223 Sony IMX991 SenSWIR 1/4" 5(h) 5(v) SWIR Area Scan
get a quote for this product Allied Vision Alvium 1800 U-130 USB 3.0 1296x1032 12 119 Sony IMX990 SenSWIR 1/2" 5(h) 5(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye CL-008 TEC1 SWIR Camera Link 320x256 14 344 Proprietary 12.2mm 30(h) 30(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye CL-032 TEC1 SWIR Camera Link 636x508 14 100 Proprietary 20.3mm 25(h) 25(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye CL-033 TEC1 SWIR Camera Link 640x525 14 301 Proprietary 12.2mm 15(h) 15(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye CL-033 TECless SWIR Camera Link 640x525 14 301 Proprietary 12.2mm 15(h) 15(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye G-008 TEC1 SWIR GigE 320x256 14 344 Proprietary 12.2mm 30(h) 30(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye G-032 TEC1 SWIR GigE 636x508 14 100 Proprietary 20.3mm 25(h) 25(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye G-032 TEC2 SWIR GigE 636x508 14 100 Proprietary 20.3mm 25(h) 25(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye G-033 TEC1 SWIR GigE 640x525 14 301 Proprietary 12.2mm 15(h) 15(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye G-033 TECless SWIR GigE 640x525 14 301 Proprietary 12.2mm 15(h) 15(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye G-034 TEC1 SWIR GigE 636x508 14 303 Proprietary 12.2mm 15(h) 15(v) SWIR Area Scan
get a quote for this product Allied Vision Goldeye G-130 TEC1 SWIR GigE 1280x1024 12 94 Sony IMX990 1/2" 5(h) 5(v) SWIR Area Scan

Short Wave Infrared (SWIR) Cameras
Allow Previously Unseen Features to be Visible


Except for individuals already familiar with imaging outside of the human-visible spectrum, SWIR imaging and its benefits may seem difficult to comprehend.

SWIR imaging systems use specially designed sensors, lighting, and lenses, with different materials than those used for visible light, to create digital image representations from the realm of Short Wave Infrared, from about 0.9 – 1.7 μm. Just as in traditional machine vision, applications may be developed whereby the image may be algorithmically analyzed to automate materials handling, quality control, real-time processing and other tasks.

Representative applications made possible by SWIR imaging:

Efficacy of water absorption by plants
Efficacy of water absorption by plants
Silicon wafer defect inspection
Silicon wafer defect inspection
Laser beam profiling
Laser beam profiling

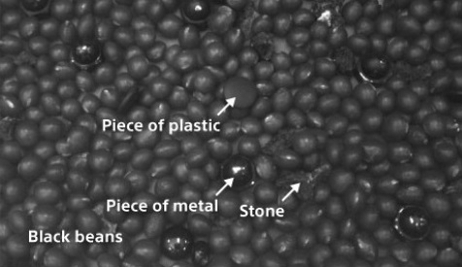

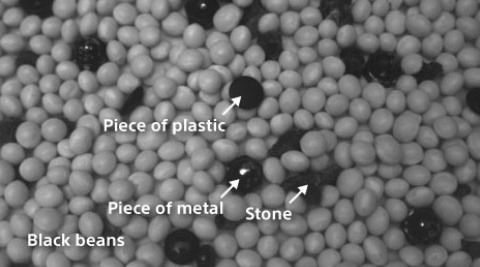

Consider the following two images. The left image, acquired in a visible imaging system, does not make it easy to distinguish that there are four different materials. But the right image clearly shows the black beans, the “keeper” product in this case, as distinct from the undesired materials. Whether for robotic sorting or quality control documentation, SWIR imaging opens up whole new ranges of applications.

Foreign Material Inspection under visible light
Foreign Material Inspection under visible light
Foreign Material Inspection under SWIR condtions
Foreign Material Inspection under SWIR condtions

SWIR Camera Sensors

SWIR cameras typically use InGaAs sensors, a compound of indium gallium arsenide which acts as a semi-conductor photon detector in the SWIR spectrum. Depending on the application, including duration of exposure and other factors, cameras using InGaAs sensor may be uncooled or cooled, which in turn influences their size, power consumption, cost, and performance characteristics. SWIR sensors are available in both area scan and line scan formats. As with most engineering solutions, one wants to get a solution that is certainly good enough, but without over-designing. Besides sensor and camera size, camera interface to the computer host must be considered. Popular interfaces include but are not limited to GigE, USB, CameraLink, and more recently CSI-2.

How do you select the best SWIR camera for your machine vision imaging application?

As with visible imaging applications, one must determine the field of view and necessary resolution, which will dictate sensor size as well as lens constraints and camera positioning. Will the object(s) or camera be in motion, or stationary? What exposure time is intended, and what are the shortest conceivable and longest conceivable exposure times? Do you know what software development kit (SDK) or package you will use? Will you do your own integration of camera, lens, lighting, fixturing, and software, or do you require integration assistance? If you are confident and experienced, there are many SWIR cameras to choose among. For assistance, contact us, as our sales engineers are seasoned professionals who take pride and helping our customers navigate the many options to an optimal SWIR vision system.
