Industrial Camera Accessories

25GigE 2-Port SFP28 Interface Card

This 2-Port SFP28 25GigE Interface Card (Product Code: 30220) has been thoroughly tested for performance and reliability with Allied Vision 25GigE cameras. By utilizing RDMA (Remote Direct Memory Access) technology, the board offloads tasks from the host CPU and RAM, ensuring stable and efficient data delivery even under the most demanding workloads.

User Guide

100GigE 2-Port QSFP28 Interface Card

This 2-Port QSFP28 100GigE Interface Card (Product Code: 30221) has been thoroughly tested for performance and reliability with Allied Vision 100GigE cameras. By utilizing RDMA (Remote Direct Memory Access) technology, the board offloads tasks from the host CPU and RAM, ensuring stable and efficient data delivery even under the most demanding workloads.

User Guide

Transceiver QSFP28

The Transceiver QSFP28 transceiver (Product Code: 30223) enables ultra-high-speed, long-distance data transmission to overcome long distance limitation for high-performance machine vision applications. 100GigE connections require 2 transceivers: 1 transceiver on the camera and 1 transceiver on the interface card.

User Guide

Quad PoE GigE PCIe x4 NIC card LR-PCIE-4PTPOE-1G

PoE Quad NIC card with Intel® I350 chipsets. If you have 4 PoE cameras, the GigE LR-PCIE-4PTPOE-1G host adapter card is a cost effective way to interface and power the cameras.

DatasheetWhat you need to know about PoE

Dual 10GigE POE PCIe x2 Gen3 NIC card - Neousys PCIe-PoE550X

2-port 10GbE network adapter with IEEE 802.3at PoE+ machine vision frame grabber card, two 10GbE ports; Intel® X550-AT2 10 GigE controller, 10GbE & 10GbE 802.3at PoE+ with CAT-6/ 6a cable (Max. 100 meters), NBASE-T and 1000BASE-T with CAT-5/ 5e cable, compliant with IEEE 802.3at to deliver 25.5W each port, 15.5 KB jumbo frame, NIC teaming and IEEE 1588, per-port PoE+ power on/off control via API.

DatasheetWhat you need to know about PoE

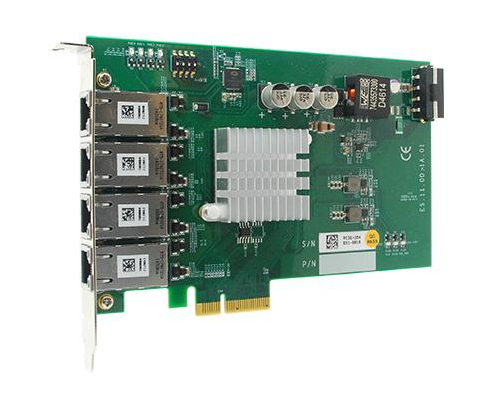

Quad GigE POE PCIe x4 NIC card - Neousys NEO-PCIE-POE354AT

POE Quad NIC card with Intel® I350-AM4 server-grade chipsets. If you have 4 POE cameras the NEO-PCIE-POE354AT card is the most cost effective way to interface and power the cameras.
Datasheet Manual

What you need to know about PoE

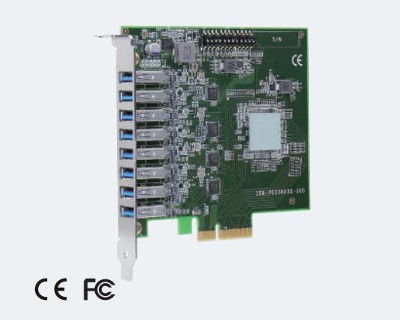

Neousys PCIe-USB381F 8-port USB3.1 Gen1 host adapter

Neousys PCIe-USB381F is an industrial-grade 8-port USB 3.1 Gen1 frame grabber card for machine vision applications. Featuring x4 PCI Express Gen2 interface and four Fresco FL1100SX xHCI controllers, PCIe-USB381F can provide up to 400MB/s sustained data transfer rate per port with four USB3 cameras operating simultaneously, or provide a total bandwidth of 1600MB/s when eight cameras are plugged in.

DatasheetManual
