Schneider Optics Industrial Lenses and Lens Systems

Schneider Optics manufacturers very high quality megapixel-class lenses that are very well suited for factory automation and precision measurement applications. Schneider Optics lenses are available in 2/3” to 43mm (F-mount) format. The 5 Megapixel APO-Xenoplan family is specifically optimized for the popular 3.45µm pixel size of today’s finest CMOS sensors. All Schneider Optics industrial camera lenses and lens are made from the finest quality glass and feature extremely low distortion, metal barrels with locking screws to ensure long-term stability in production environments, and offer some of the shortest minimum object distance (MOD) in the industry. Schneider Optics lenses are optically corrected and broadband coated for the spectral range of 400-1000nm, 400-700nm, and 700-1000nm, offering optimal transmission across the VIS-NIR spectral range. Schneider Optics is one of the superior lens manufacturers that publishes and warrants lp/mm, MTF, and transmission data for its lens products. Read More...

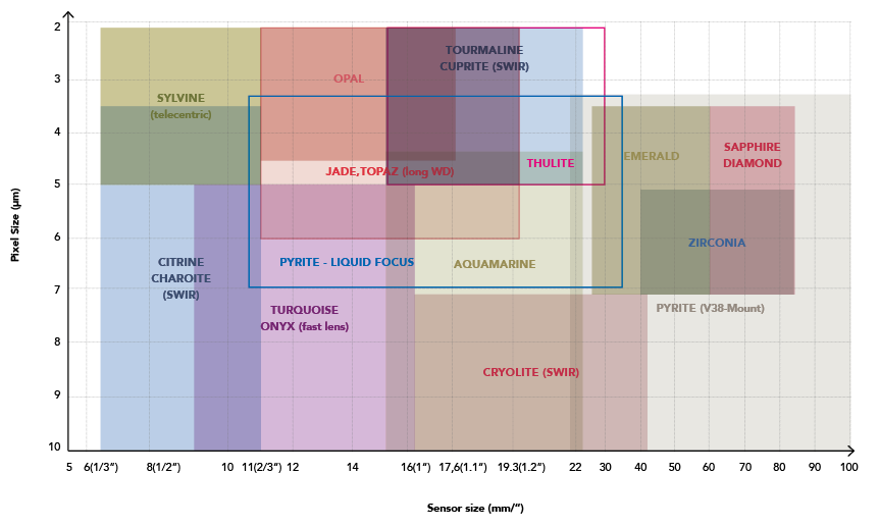

This image lists the Schneider Optics products. You can locate the exact pixel sensor size match in this diagram
Schneider Optics CITRINE C-Mount 2/3" Lenses CITRINE C-Mount 2/3" Lenses
  • Image properly across the entire specified range without any focus shifts
  • Robust mechanical design with lockable focus & iris ensure long-term stability in production environment
  • Optically corrected and broadband coated for the spectral range of 400-1000nm (VIS+NIR)
Schneider Optics TURQUOISE 1" C-Mount Lenses TURQUOISE 1" C-Mount Lenses
  • Compact lenses for larger sized, megapixel sensors up to 16mm diagonal
  • Broadband coated and may be used alternatively in the visible (VIS) or near infrared (NIR) ranges
  • Robust mechanical design with lockable focus & iris ensure long-term stability in production environments
  • The Cinegon 1.8/16mm lens accepts an M30.5x0.5 filter thread, while the Cinegon 1.9/10mm lens uses a filter adapter to accept an M62x0.75 filter.
Schneider Optics JADE 1.2"  C-Mount Lenses JADE 1.2" C-Mount Lenses
  • Set of 5 lenses: 12, 16, 25, 35, 50 mm fixed focal length
  • Image diagonal of 19.3 mm
  • Perfectly matching even the largest Sony Pregius S™ up to 1.2" with 25 Megapixels
  • Suitable for all C-mount cameras with sensor sizes up to 1.2"
Read More...
Schneider Optics AQUAMARINE 1.3" Lenses AQUAMARINE 1.3" Lenses
  • 1.3" compact lenses for larger sized, megapixel sensors up to 22mm diagonal
  • Broadband coated and may be used alternatively in (400-700nm) or near infrared (700-1000nm) ranges
  • Robust mechanical design with lockable focus & iris ensure long-term stability in production environments
  • 1.3" format lenses both accept a M30.5x0.5 filter thread
Schneider Optics TOURMALINE 1.3" Lenses TOURMALINE 1.3" Lenses
  • 1.3" compact lenses for larger sized, 12 MP sensors up to 24mm diagonal
  • Resolution down to 2.4µm pixel size
  • Low chief ray angle is suitable for all SONY Pregius™ generations
  • C-Mount and TFL-Mount available
Read More...
Schneider Optics EMERALD F-mount Lenses EMERALD F-mount Lenses
  • Uniform performance across the focal plane and image circle
  • Wide range 400-1000nm coating for use in the VIS/NIR applications
  • Compact and robust housing
  • Very low distortion
Read More...
Schneider Optics SAPPHIRE Line Scan Lenses SAPPHIRE Line Scan Lenses
  • Extremely high resolution, high-speed, high performance
  • Pixel size 3.5µm / 5µm (XL lenses) Image circle: 62.5 mm / 82 mm (XL lenses)
  • 400 nm to 1000 nm broadband AR-coating
  • Optimized for 11 specific magnifications: 0.07x-2.0x
Read More...
Schneider Optics ZIRCONIA Line Scan Lenses ZIRCONIA Line Scan Lenses
  • Image circle: 62.5 mm - 82 mm
  • High resolution
  • 5 µm pixel size
  • Optimized for 6 specific magnifications: 0.1x-2.0x
Read More...
Schneider Optics THULITE Large Format Lenses THULITE Large Format Lenses
  • 2" (32 mm) max. Sensor size
  • Suitable for all Sony Pregius™ generation sensors
  • 3 focal lengths: 35 mm, 50 mm, 75 mm
  • Very high resolution down to 2.4 µm pixel size
Read More...
Schneider Optics PYRITE  Large Area and Line Scan Lenses PYRITE Large Area and Line Scan Lenses
  • 11 focal lengths: 28 mm-120 mm
  • Very low distortion and high resolution
  • Wide working distance range
  • Lenses for specific magnifications
Read More...
Schneider Optics PYRITE LF Focus Tunable Liquid Lenses PYRITE LF Focus Tunable Liquid Lenses
  • Focus tunable liquid lens
  • Wide range of working distances
  • Fast focus within milliseconds
  • Available with C-Mount or TFL-Mount
Read More...
