Components Express (CEI) Camera Enclosures and Camera Mounts

Components Express (CEI) industrial camera enclosures and mounts are high quality and ideal for machine vision and industrial applications, and they are made in the USA.

CEI camera enclosures have a patent-pending lightweight, low-profile design that protects your camera and your investment. They feature an integrated connector design with no cord grips, excellent heat dissipation, and IP67 protection to protect your camera even in the most harsh environments. The camera enclosures can be customized with Mounts, Visors, Air Curtains, Windows & Filters, and Cables. Customized M12 cables cables can be configured for machine vision applications with tight space requirements.

CEI adjustable camera mounts also have a patent-pending lightweight low-profile design and feature 360° rotation, adjustable tilting with a strong collet-style tilt lock, and index marks for quick repeatable setups.

CEI Camera Enclosures Features

CEI Integrated Connector Design ( no cord grips )
IP67 protection
Excellent heat dissipation
Enclosure tailored for specific Camera & Optics
Made in USA, Patent Pending

Camera enclosures specifications

CEI Camera Mount Features

Supports 360 deg rotation, 90-180 deg tilting
Strong collet style tilt lock
Compact footprint
Index marks
Ideal for mounting cameras and enclosures

Camera mounts specifications

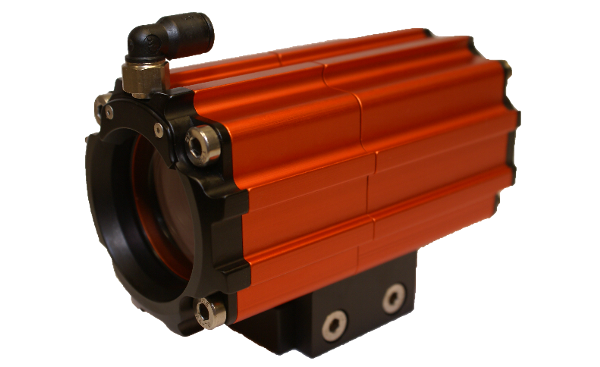

get a quote for the CEI 29mm-IP67 SERIES - Extruded camera enclosure

CEI camera enclosure 29mm-IP67 Series

29mm-IP67 SERIES (Extruded)

Design for Dalsa Genie Nano and other popular camera models
Allows changing and focusing Optics while mounted
Flexible mounting options
High quality (easy to replace) windows by Midwest Optical
Read More...

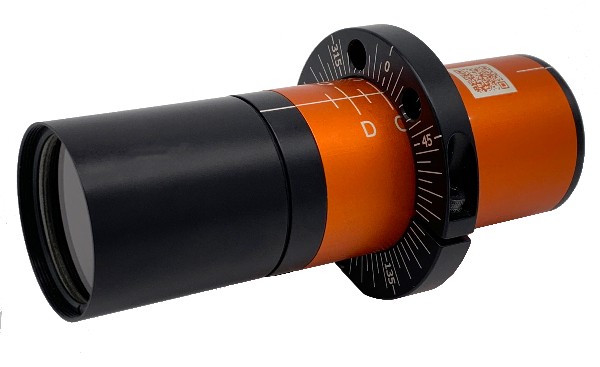

get a quote for the CEI 38mm-IP67 Series Round camera enclosure

CEI camera enclosure 38mm-IP67 Series Round

38mm-IP67 Series Round

Universal design for popular 29mm camera models
Enclosure tailored for specific Camera & Optics
High quality (easy to replace) windows by Midwest Optical
Lightweight low-profile design
Read More...

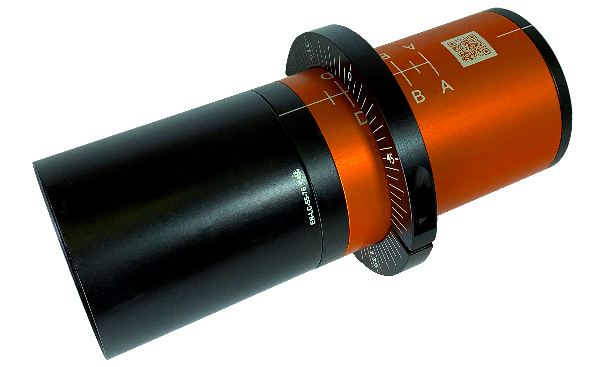

get a quote for the CEI 55mm-IP67 Series Round camera enclosure

CEI camera enclosure 55mm IP67 Series

55mm-IP67 Series Round

Universal design for camera models with up to 42mm2 body
Also supports many popular Dalsa Genie Nano cameras
Adjustable Mount with 4 tapped holes included
High quality (easy to replace) windows by Midwest Optical
Read More...

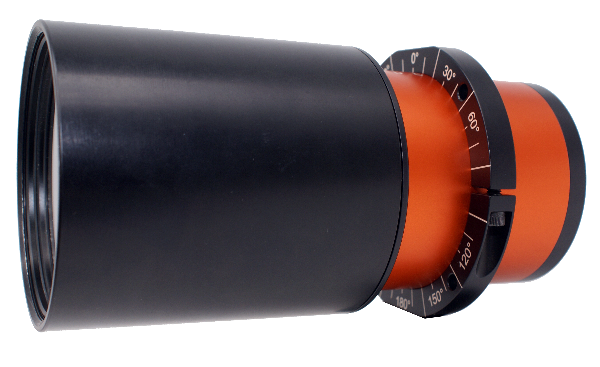

get a quote for the CEI 88mm-IP67 Series Round camera enclosure

CEI camera enclosure 88mm-IP67 Series Round

88mm-IP67 Series Round

Universal design for camera models with up to 60mm2 body
Also supports Dalsa Genie Nano XL, Nano 5G, Sony Block
Excellent heat dissipation
Adjustable Mount with 4 tapped holes included
Read More...

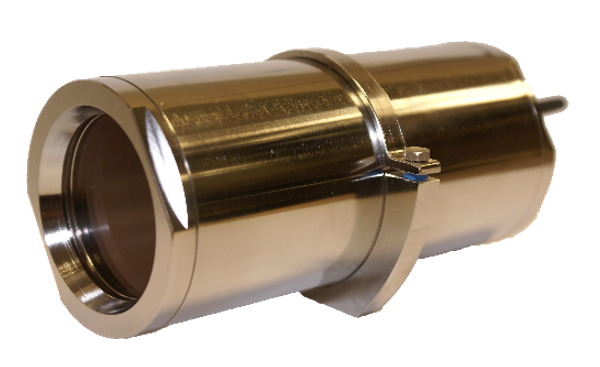

get a quote for the CEI Stainless Series IP67 camera enclosure

CEI camera enclosure Stainless Series IP67

Stainless Series IP67

All Stainless Steel construction
Flexible mounting options
High quality (easy to replace) windows by MidOpt
Round wash-down design
Read More...

get a quote for the CEI EN-M4 camera mount

CEI adjustable camera mount

Index Mount™ EN-M4 Adjustable Camera Mount

Supports 360° rotation, 90° tilting
Index marks for quick repeatable setups
Strong collet-style tilt lock
Lightweight low-profile design
Read More...

get a quote for the CEI EN-M4X camera mount

CEI adjustable extreme duty camera mount EN-M4X

Index Mount™ EN-M4X Extreme Duty Adjustable Camera Mount

Supports 360° rotation, 180° tilting
Index marks for quick repeatable setups
Strong collet-style tilt lock
Lightweight low-profile design
Read More...
