Prophesee GenX320 Starter Kit for Raspberry Pi 5

get a quote for the Prophesee GenX320 Starter Kit for Raspberry Pi 5

The Prophesee GenX320 Starter Kit for Raspberry Pi 5 is a compact, high powered embedded vision development kit built around the Prophesee ultra low power, ultra compact and low latency GENX320 sensor module. The kit streamlines the development of real-time ultra-low latency event-based applications including drones, robotics, industrial IoT and many others.

The GenX320 Starter Kit for Raspberry Pi 5 is available in two configurations. Both options are equipped with a complete lensed event based camera board, and a 20 cm flex cable with MIPI Raspberry Pi compatible output. You can choose either:

  1. Chip on Board with an interchangeable M12 S-mount lens holder
  2. Compact Optical Module with an interchangeable M6 Flex module lens holder

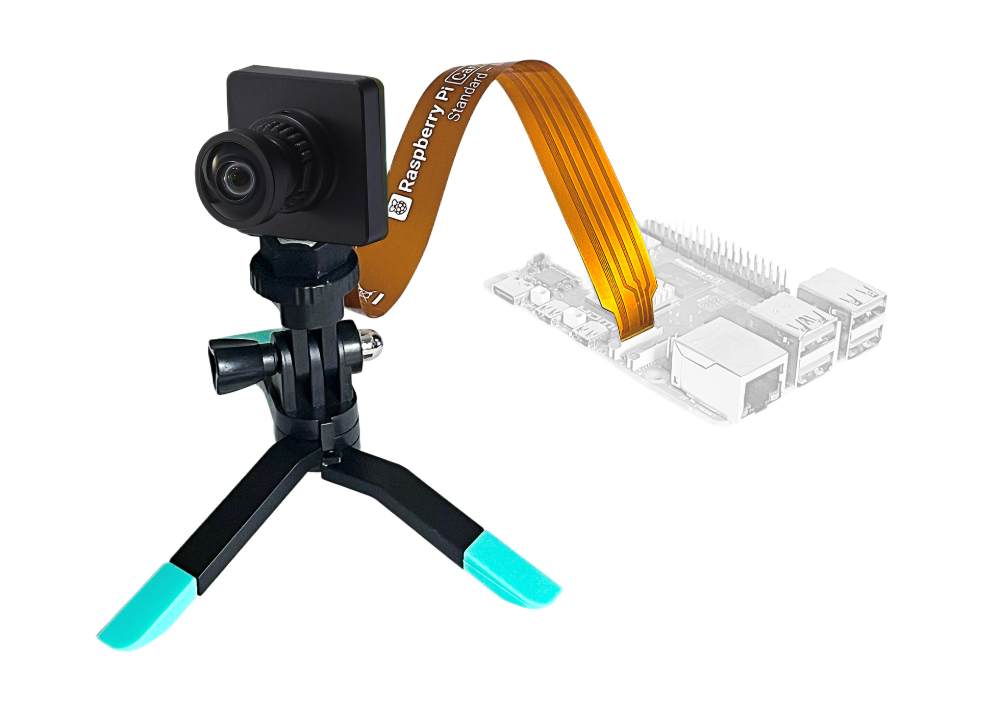

Prophesee GenX320 starter kit for Raspberry Pi 5 with Chip on Board

Chip on Board with M12 mount, FOV 76° lens

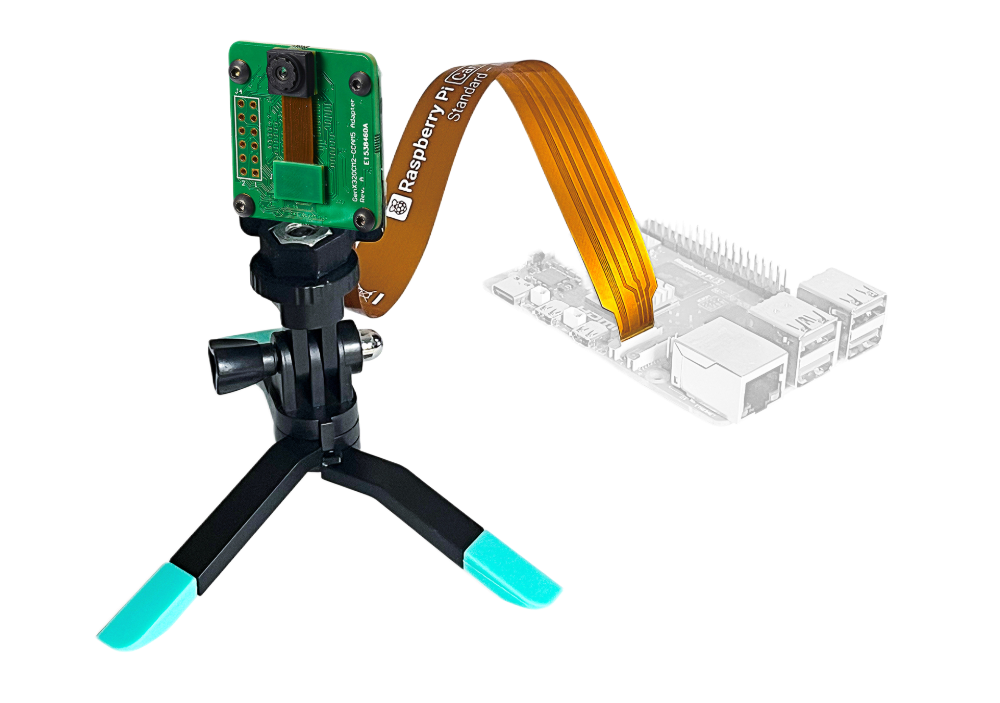

Prophesee GenX320 starter kit for Raspberry Pi 5 with Compact Optical Module

Compact Optical Module with M6 mount, FOV 104° lens

Accelerate development with OpenEB, an open source development package with Python and C++ APIs, and access to drivers, data recording, replay and visualization tools.

Event-Based Vision Sensors (EVS) and neuromorphic engineering technology have overcome the limits encountered with traditional machine vision technology, and enabled many exciting applications to be developed including object tracking, fall detection, eye tracking, gesture recognition, constellation tracking, motion analysis, and vibration tracking. Check out these Event-Based Vision System applications in action.

Raspberry Pi5 GENX320 Product Brief - Chip on Board Raspberry Pi5 GENX320 Product Brief - Compact Optical Module


GEN320X Starter Kit for Raspberry Pi5 Features

  • Prophesee GenX320 development kit module for Raspberry Pi 5 board
  • Available with Compact Optical Module or Chip on Board variants
  • Sensor module connects to the Raspberry Pi 5 with the camera connector MIPI CSI-2 (D-PHY) interface
  • OpenEB support with Python and C++ APIs
  • Access to drivers, data recording, replay and visualization tools on GitHub
  • Prophesee GenX320 1/5" Event-based vision sensor:
    • 320×320 array of 6.3μm contrast detection pixels
    • Ultra high-speed event data output (equivalent to >10kfps time resolution) with 1μs-precision time stamping
    • Low latency <150 μs at 1,000 lux, <1,000 μs at 5 lux
    • Native high dynamic range >140 dB
    • Low power consumption <50 mW
