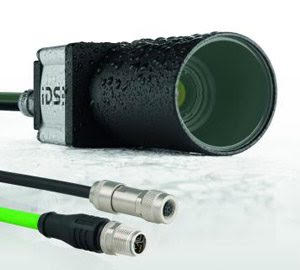

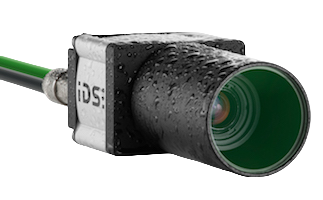

IDS Imaging uEye FA IP65/67 GigE Cameras

uEye FA GigE cameras with IP65/67 protection are designed for harsh environments in industrial inspection, robotics, medical, scientific imaging, and a wide variety of other demanding automated imaging and machine vision applications requiring IP65/67 wash down and dust resistance. FA cameras are available with WVGA to 20 megapixel sensors from industry leading manufacturers like Sony, ON Semi, and Teledyne e2V.

The integrated image memory decouples image acquisition from image transmission making the uEye FA GigE camera an excellent choice for multi-camera systems. In addition, on-board pixel pre-processing, LUT or Gamma functions minimize the workload for the host computer.

All IDS cameras are backed by one of the industry’s most comprehensive SDKs (Software Development Kit), and offer long production lifecycles in excess of 10 years.

Up to 25 megapixel CMOS sensors
1/3.6" to 4/3" sensor format
120MB image memory for multi-camera flexibility
IP 65/67 rated for dust/mist environments

Integrated PoE & FPGA/LUT
C-mount metal housing, 41 x 53 x 42.7mm with C-mount
Binder 712 for GPIO, M12 for GigE, drag chain
GigE Vision compliant versions

Model	Interface	Resolution	Bits	Frame Rate	Sensor	Format	Pixel	Spectrum	Scan Type
GV-5000FA-P-M	GigE	4096x3000	12	10fps	Sony IMX253MZR	1.1"	3.45(h) 3.45(v)	BW	Area Scan
GV-5040FA-M/C	GigE	1456x1088	12	78fps	Sony IMX273	1/2.9"	3.45(h) 3.45(v)		Area Scan
GV-5080FA-P-M	GigE	2448x2048	12	24fps	Sony IMX250MZR	2/3"	3.45(h) 3.45(v)	BW	Area Scan
GV-50C0FA-M/C	GigE	1936x1216	12	52fps	Sony IMX392	1/2.3"	3.45(h) 3.45(v)		Area Scan
GV-51A0FA-M/C	GigE	816x624	12	225fps	Sony IMX426	1/1.8"	9(h) 9(v)		Area Scan
GV-51F0FA-M/C	GigE	2472x2064	12	24fps	Sony IMX547	1/1.8"	2.74(h) 2.74(v)		Area Scan
GV-51J0FA-M/C	GigE	2856x2848	12	15fps	Sony IMX546	2/3"	2.74(h) 2.74(v)		Area Scan
GV-51L0FA-M/C	GigE	4128x3008	12	10fps	Sony IMX545	1/1.1"	2.74(h) 2.74(v)		Area Scan
GV-51N0FA-M/C	GigE	5328x3040	12	8fps	Sony IMX542	1.1"	2.74(h) 2.74(v)		Area Scan
GV-51R0FA-M/C	GigE	5328x4608	12	5fps	Sony IMX540	4/3"	2.74(h) 2.74(v)		Area Scan
GV-5200FA-M/C	GigE	4096x3000	12	10fps	Sony IMX304	1.1"	3.45(h) 3.45(v)		Area Scan
GV-5240FA-M/C	GigE	1280x1024	10	59fps	e2v EV76C560	1/1.8"	5.3(h) 5.3(v)		Area Scan
GV-5240FA-NIR-GL	GigE	1280x1024	10	59fps	e2v EV76C661	1/1.8"	5.3(h) 5.3(v)	NIR	Area Scan
GV-5250FA-M/C	GigE	1600x1200	10	52fps	e2v EV76C570	1/1.8"	4.5(h) 4.5(v)		Area Scan
GV-5260FA-M/C	GigE	1920x1200	12	43fps	Sony IMX249	1/1.2"	5.86(h) 5.86(v)		Area Scan
GV-5270FA-M/C	GigE	2048x1536	12	34fps	Sony IMX265	1/1.8"	3.45(h) 3.45(v)		Area Scan
GV-5280FA-M/C	GigE	2448x2048	12	22fps	Sony IMX264	2/3"	3.45(h) 3.45(v)		Area Scan
GV-5290FA-M/C	GigE	4096x2160	12	13fps	Sony IMX267	1"	3.45(h) 3.45(v)		Area Scan
GV-5480FA-M-GL	GigE	2560x1920	12	15fps	ON Semi MT9P031	1/2.5"	2.2(h) 2.2(v)		Area Scan
GV-5580FA-C-HQ	GigE	2560x1920	12	15fps	ON Semi MT9P006	1/2.5"	2.2(h) 2.2(v)		Area Scan
GV-5800FA-M/C	GigE	5536x3692	12	6fps	Sony IMX183	1"	2.4(h) 2.4(v)		Area Scan
GV-5860FA-M/C	GigE	1936x1096	12	56fps	Sony IMX290	1/2.8"	2.9(h) 2.9(v)		Area Scan
GV-5880FA-M/C	GigE	3088x2076	12	18fps	Sony IMX178	1/1.8"	2.4(h) 2.4(v)		Area Scan
GV-5890FA-M/C	GigE	4000x3000	12	10fps	Sony IMX226	1/1.8"	1.85(h) 1.85(v)		Area Scan
GV-5990FA-M/C	GigE	4512x4512	12	5.50fps	Sony IMX541	1.1"	2.74(h) 2.74(v)		Area Scan
UI-5040FA-M/C	GigE	1448x1086	12	73fps	Sony IMX273	1/2.9"	3.45(h) 3.45(v)		Area Scan
UI-5130FA-M/C	GigE	800x600	10	205fps	ON Semi PYTHON 500	1/3.6"	4.8(h) 4.8(v)		Area Scan
UI-5140FA-M/C	GigE	1280x1024	10	88fps	ON Semi PYTHON 1300	1/2"	4.8(h) 4.8(v)		Area Scan
UI-5200FA-M/C	GigE	4104x3006	12	9fps	Sony IMX304	1.1"	3.45(h) 3.45(v)		Area Scan
UI-5240FA-M/C	GigE	1280x1024	10	59fps	e2v EV76C560	1/1.8"	5.3(h) 5.3(v)		Area Scan
UI-5250FA-M/C	GigE	1600x1200	10	52fps	e2v EV76C570	1/1.8"	4.5(h) 4.5(v)		Area Scan
UI-5260FA-M/C	GigE	1936x1216	12	47fps	Sony IMX249	1/1.2"	5.86(h) 5.86(v)		Area Scan
UI-5270FA-M/C	GigE	2056x1542	12	36fps	Sony IMX265	1/1.8"	3.45(h) 3.45(v)		Area Scan
UI-5280FA-M/C	GigE	2456x2054	12	23fps	Sony IMX264	2/3"	3.45(h) 3.45(v)		Area Scan
UI-5290FA-M/C	GigE	4104x2174	12	13fps	Sony IMX267	1"	3.45(h) 3.45(v)		Area Scan
UI-5580FA-C-HQ	GigE	2560x1920	12	15fps	ON Semi MT9P006	1/2.5"	2.2(h) 2.2(v)		Area Scan
UI-5860FA-M/C	GigE	1936x1096	12	53fps	Sony IMX290	1/2.8"	2.9(h) 2.9(v)		Area Scan
UI-5880FA-M/C	GigE	3088x2076	12	18fps	Sony IMX178	1/1.8"	2.4(h) 2.4(v)		Area Scan
