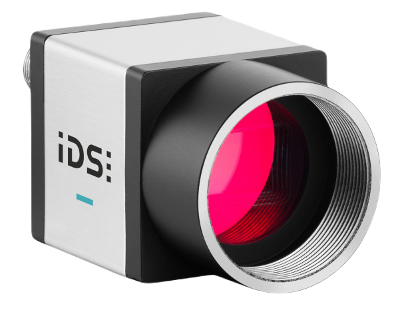

IDS Imaging uEye Live SCP GL-54J0SCP
The IDS uEye Live SCP GL-54J0SCP streaming and recording camera features a 2µm pixel size, 30 fps at 3856x2176 resolution, and a GigE interface. The Sony IMX678 8.39 megapixel 1/1.8" rolling shutter color sensor produces clear, crisp images even in low-light conditions.
IDS Imaging uEye Live Series SCP cameras are streaming and recording cameras that are specifically designed for process monitoring. The SoC (System on a Chip) provides on-board processing for continuous monitoring. With SoC technology and on-board image processing, process monitoring can be performed without the need for complex programming or a PC - producing stable live streams with consistent superb, high-resolution image quality.
IDS uEye Live SCP / SLE Family Features
GL-54J0SCP Camera Features
| Manufacturer: | IDS | Model: | GL-54J0SCP | Total Pixels: | 8,390,656 |
| Resolution: | 3856 (h) 2176 (v) | Sensor Size: | 1/1.8" | Color/B & W: | Color |
| Frame Rate (fps): | 30 | Sensor Type: | CMOS | Sensor Device: | Sony IMX678 |
| Pixel Size(µm): | 2(h) 2(v) | A/D Bits: | 12 | Shutter Speed: | - |
| Interface: | GigE | Voltage(VDC): | PoE | Power(watts): | 3.3 W - 4.1 W |
| Lens Mount: | C | Shutter Type: | Rolling | Weight(grams): | 47 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 29Lx29Wx29H |
GL-54J0SCP Datasheet
