GigE Area scan camera IDS Imaging GV-51L2SE-M/C IDS Imaging GV-51L2SE Rev.4.2
uEye+
GigE Camera
Sony IMX545 Sensor
4128x3008 Resolution
Area Scan Camera

get a quote for this product

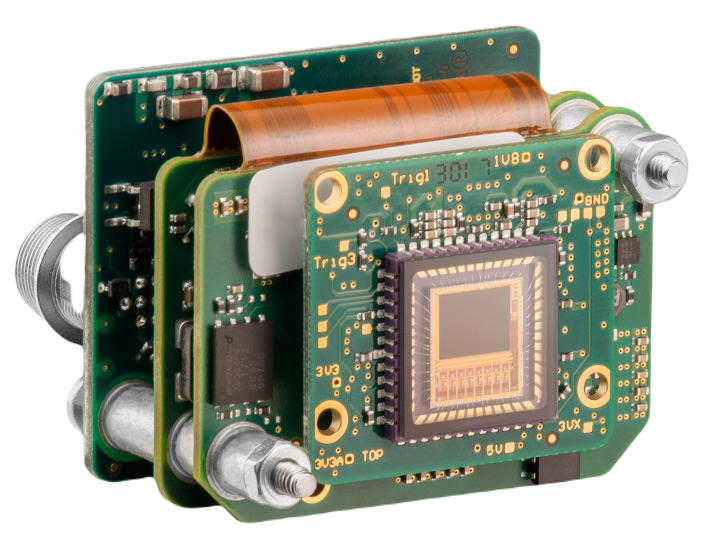

The IDS Imaging uEye+ GV-51L2SE GigE board-level camera with no lens mount features a 4th generation Sony IMX545 1/1.1" global shutter 12.42 megapixel CMOS sensor, 10 fps frame rate at full 4128x3008 resolution, and a 2.74 µm pixel size. The GV-51L2SE GigE camera is available in color or monochrome.

IDS Imaging uEye+ SE GigE cameras are available in sturdy housing with a C-mount lens mount, or as a board level camera with a C-mount lens mount, or a board level camera without a lens mount. They are available as color, monochrome or NIR cameras. These versatile GigE cameras are lightweight, compact and suitable for numerous industrial applications such as inspection, robotics and motion analysis.

uEye+ SE GigE cameras are GigE Vision compliant and can be easily integrated with the IDS Peak Software Development Kit (SDK) or with 3rd party compliant software. All IDS cameras are backed by a 3 year warranty.

uEye SE GigE Camera Family Features Features

  • Up to 25 megapixel CMOS sensors
  • 1/3.6" to 1" sensor format
  • Integrated PoE & FPGA/LUT
  • 128MB image memory for multi-camera flexibility

GV-51L2SE-M/C Camera Features

  • Sony IMX545 1/1.1" 12.42 megapixel global shutter sensor
  • 10 fps at full 4128x3008 resolution
  • 2.74 µm pixel size
  • Board camera with no lens mount
Manufacturer: IDS Model: GV-51L2SE-M/C Total Pixels: 12,417,024
Resolution: 4128 (h) 3008 (v) Sensor Size: 1/1.1" Color/B & W: Color / Monochrome
Frame Rate (fps): 10 Sensor Type: CMOS Sensor Device: Sony IMX545
Pixel Size(µm): 2.74(h) 2.74(v) A/D Bits: 12 Shutter Speed: 0.032 ms - 2000 ms
Interface: GigE Voltage(VDC): 12 V - 24 V or PoE Power(watts): 2 W - 4 W
Lens Mount: - Shutter Type: Global Weight(grams): 22
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 30Lx40Wx31.5H
