IDS Imaging GV-53F1LE Rev.2

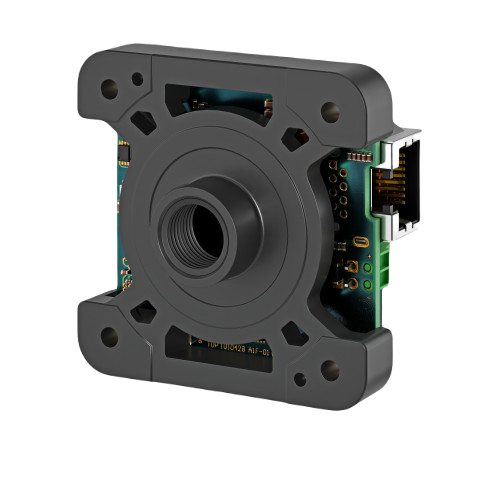

The IDS Imaging uEye+ LE GigE GV-53F1LE board-level camera with an S-mount lens mount features a Sony IMX568 1/1.8" global shutter 5.1 megapixel sensor, 24 fps at full 2472x2064, and 2.74 µm pixel size. This compact and lightweight industrial camera weighs only 30 grams. The GV-53F1LE camera excels in low-light applications where the best possible image quality is required at a low resolution. The camera is available in color or monochrome.
IDS Imaging uEye+ LE GigE board-level cameras are cost-effective, GigE Vision compliant industrial cameras. Their compact size and lightweight make them ideal for embedded applications, and integration into machines and devices. They are available with a C, CS, S, M12 lens mount or with no lens mount in color or monochrome.
LE GigE board level cameras can be easily integrated into 3rd party compliant software or used with the IDS Peak Software Development Kit (SDK). All IDS cameras are backed by a 3 year warranty.
uEye LE GigE Board-Level Camera Family Features Features
GV-53F1LE-M/C Camera Features
GV-53F1LE-M (B&W) Datasheet
GV-53F1LE-C (Color) Datasheet
GV-53F1LE-M/C Manual
Sensor Spec
| Manufacturer: | IDS | Model: | GV-53F1LE-M/C | Total Pixels: | 5,102,208 |
| Resolution: | 2472 (h) 2064 (v) | Sensor Size: | 1/1.8" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 24 | Sensor Type: | CMOS | Sensor Device: | Sony IMX568 |
| Pixel Size(µm): | 2.74(h) 2.74(v) | A/D Bits: | 12 | Shutter Speed: | 0.009 ms - 2000 ms |
| Interface: | GigE | Voltage(VDC): | 12-24V | Power(watts): | 2.8 W - 4.2 W |
| Lens Mount: | S | Shutter Type: | Global | Weight(grams): | 30 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 28.5Lx50Wx50H |
