IDS Imaging GV-53F2LE-MB Rev.2

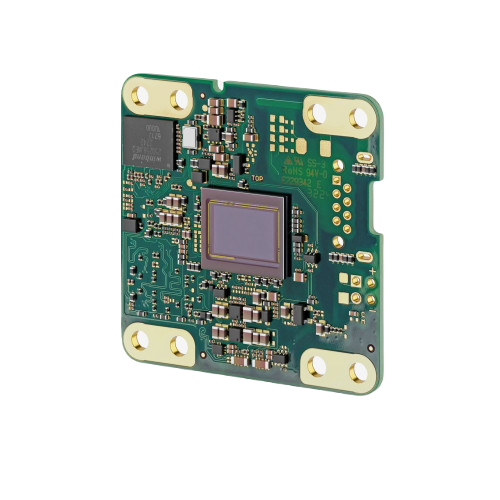

The IDS Imaging uEye+ LE GigE GV-53F2LE-MB camera is the motherboard version of the GV-53F2LE single board camera. This compact motherboard camera is suitable for applications with very tight or angled space constraints. The motherboard can be connected to a daughterboard with a Flex ribbon cable as an additional option.
The GV-53F2LE-MB motherboard camera has no lens mount, and features a Sony IMX568 1/1.8" global shutter 5.1 megapixel sensor, 24 fps at full 2472x2064, and 2.74 µm pixel size. This compact and lightweight industrial camera is available in color or monochrome.
IDS Imaging uEye+ LE GigE board-level cameras are cost-effective, GigE Vision compliant industrial cameras. Their compact size and lightweight make them ideal for embedded applications, and integration into machines and devices. They are available with a C, CS, S, M12 lens mount or with no lens mount in color or monochrome.
LE GigE board level cameras can be easily integrated into 3rd party compliant software or used with the IDS Peak Software Development Kit (SDK). All IDS cameras are backed by a 3 year warranty.

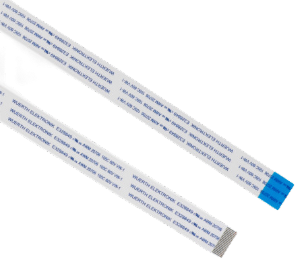

Optional Daughterboard and Flex ribbon cable
uEye LE GigE Board-Level Camera Family Features Features
GV-53F2LE-MB-M/C Camera Features
| Manufacturer: | IDS | Model: | GV-53F2LE-MB-M/C | Total Pixels: | 5,102,208 |
| Resolution: | 2472 (h) 2064 (v) | Sensor Size: | 1/1.8" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 24 | Sensor Type: | CMOS | Sensor Device: | Sony IMX568 |
| Pixel Size(µm): | 2.74(h) 2.74(v) | A/D Bits: | 12 | Shutter Speed: | 0.009 ms - 2000 ms |
| Interface: | GigE | Voltage(VDC): | 12-24V | Power(watts): | 2.8 W - 4.2 W |
| Lens Mount: | - | Shutter Type: | Global | Weight(grams): | call |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | call |
Sensor Spec
