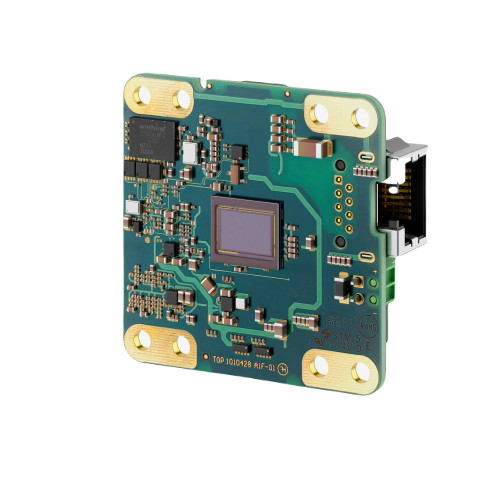

The IDS Imaging uEye+ LE GigE GV-58C2LE board-level camera with no lens mount features a Sony IMX662 1/3" rolling shutter 2 megapixel sensor, 59 fps at full 1936x1096, and 2.9 µm pixel size. This compact and lightweight industrial camera weighs only 15 grams. The GV-58C1LE camera excels in low-light applications where the best possible image quality is required at a low resolution. The camera is available in color or monochrome.
IDS Imaging uEye+ LE GigE board-level cameras are cost-effective, GigE Vision compliant industrial cameras. Their compact size and lightweight make them ideal for embedded applications, and integration into machines and devices. They are available with a C, CS, S, M12 lens mount or with no lens mount in color or monochrome.
LE GigE board level cameras can be easily integrated into 3rd party compliant software or used with the IDS Peak Software Development Kit (SDK). All IDS cameras are backed by a 3 year warranty.
uEye LE GigE Board-Level Camera Family Features Features
GV-58C2LE-M/C Camera Features
Manufacturer: | IDS | Model: | GV-58C2LE-M/C | Total Pixels: | 2,121,856 |
Resolution: | 1936 (h) 1096 (v) | Sensor Size: | 1/3" | Color/B & W: | Color / Monochrome |
Frame Rate (fps): | 59 | Sensor Type: | CMOS | Sensor Device: | Sony IMX662 |
Pixel Size(µm): | 2.9(h) 2.9(v) | A/D Bits: | 12 | Shutter Speed: | 0.013 ms - 1999 ms |
Interface: | GigE | Voltage(VDC): | 12 V - 24 V | Power(watts): | 2.1 W - 3.1 W |
Lens Mount: | - | Shutter Type: | Rolling | Weight(grams): | 15 |
S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 15Lx45Wx45H |
