10GigE Area scan camera IDS Imaging GV-79F0WP-M/C IDS Imaging GV-79F0WP
uEye+
10GigE Camera
Sony IMX537 Sensor
2472x2064 Resolution
Area Scan Camera

get a quote for this product

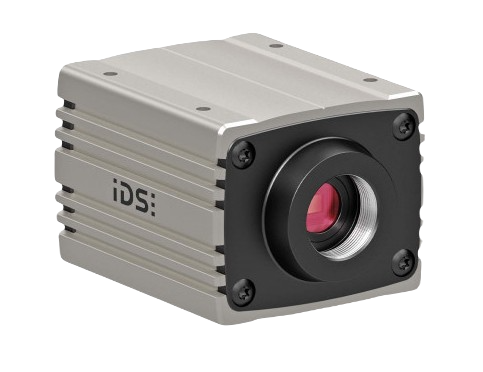

The IDS Imaging uEye+ GV-79F0WP 10GigE camera features a Sony IMX537 1/1.8" 5 megapixel global shutter CMOS sensor, a 2.74 µm pixel size, and 220 fps at full 2472x2064 resolution.

IDS Imaging uEye+ Warp10 10GigE cameras are ideal for demanding applications, such as production lines, sports analysis, surveying, or machine vision inspection tasks that require high resolution and high transmission speeds to capture fast moving objects without loss of image quality or blur. The 10GigE interface transmits data at up to 10 Gbit/s and can be used over long distances of up to 100 meters without repeaters. Warp10 cameras are downward compatible and automatically adjust their speed when used on older existing 1GigE, 2.5GigE, and 5GigE networks. uEye+ Warp10 GigE cameras can be easily integrated with 3rd party compliant software or used with IDS Peak Software Suite SDK. All IDS cameras are backed by a 3 year warranty.

IDS Imaging uEye+ Warp10 10GigE Cameras Features

  • 10GigE vision interface
  • Ultra fast high speed transmission
  • Downward compatible with 1GigE, 2.5GigE and 5GigE
  • Capture moving objects without loss of detail or blur

GV-79F0WP-M/C Camera Features

  • Sony IMX537 1/1.8" global shutter sensor
  • 220 fps a full 5 megapixel (2472x2064) resolution
  • 2.74 µm pixel size
  • C-mount lens mount
  • Manufacturer: IDS Model: GV-79F0WP-M/C Total Pixels: 5,102,208
    Resolution: 2472 (h) 2064 (v) Sensor Size: 1/1.8" Color/B & W: Color / Monochrome
    Frame Rate (fps): 220 Sensor Type: CMOS Sensor Device: Sony IMX537
    Pixel Size(µm): 2.74(h) 2.74(v) A/D Bits: 12 Shutter Speed: 0.009 ms - 2000 ms
    Interface: 10GigE Voltage(VDC): 12 V - 24 V or PoE+ Power(watts): 9.1 W - 14.9 W
    Lens Mount: C Shutter Type: Global Weight(grams): 550
    S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 94.5Lx75Wx60H
