USB3 Area scan camera IDS Imaging U3-30C2SE-M/C IDS Imaging U3-30C2SE Rev.1.2
uEye+
USB3 Camera
Sony IMX392 Sensor
1936x1216 Resolution
Area Scan Camera

get a quote for this product

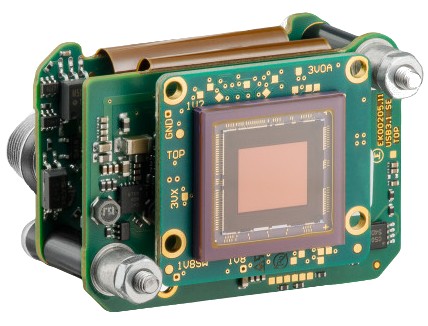

The U3-30C2SE Rev.1.2 USB3 camera features a Sony IMX392 1/2" 2 megapixel global shutter CMOS sensor with a 3.45 µm pixel size, and 166 fps at full 1936x1216 resolution. The U3-30C2SE is a board-level camera without a lens holder.

uEye SE USB 3.1 Gen1 Type C Cameras are available housed with a C-mount lens mount, or as a board-level camera with a C-mount lens mount or without a lens holder, and color or monochrome. With numerous options to choose from, uEye SE USB3 cameras are versatile and well-suited for many industrial applications, such as factory automation, engineering, and traffic applications. uEye+ LE USB3 cameras can be easily integrated with 3rd party compliant software or used with IDS Peak Software Suite SDK. All IDS cameras are backed by a 3 year warranty.

uEye SE USB 3.1 Gen1 Camera Family Features Features

  • Up to 25 megapixel CMOS sensors
  • USB 3.1 Gen1 w/ Type C connector
  • Suitable for single or multi-camera operation
  • Hirose-8 for GPIO

U3-30C2SE-M/C Camera Features

  • 1936x1216 resolution
  • Sony IMX392 1/2" CMOS sensor
  • Board level camera without lens holder
  • Multi AOI
Manufacturer: IDS Model: U3-30C2SE-M/C Total Pixels: 2,354,176
Resolution: 1936 (h) 1216 (v) Sensor Size: 1/2" Color/B & W: Color / Monochrome
Frame Rate (fps): 166 Sensor Type: CMOS Sensor Device: Sony IMX392
Pixel Size(µm): 3.45(h) 3.45(v) A/D Bits: 12 Shutter Speed: .023 ms to 30000 ms
Interface: USB3 Voltage(VDC): 5-15 Power(watts): 2.1 W - 4.3 W
Lens Mount: C Shutter Type: Global Weight(grams): 20
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 25Lx40Wx29H
