IDS Imaging U3-3864LE Rev 1.2

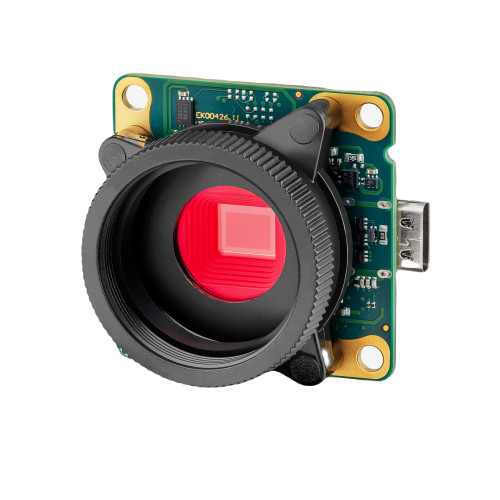

uEye LE USB3 Cameras are available in housed or board-level variants with a C, CS, S mount lens holder or no lens holder for some board models, and color or monochrome. uEye+ LE USB3 cameras can be easily integrated with 3rd party compliant software or used with IDS Peak Software Suite SDK. All IDS cameras are backed by a 3 year warranty.
uEye LE USB 3.0/3.1 Camera Family Features Features
U3-3864LE-M/C Camera Features
U3-3864LE-M-GL (B&W) Datasheet
U3-3864LE-C-HQ (Color) Datasheet
U3-3864LE-M/C Manual
Sensor Spec
| Manufacturer: | IDS | Model: | U3-3864LE-M/C | Total Pixels: | 2,121,856 |
| Resolution: | 1936 (h) 1096 (v) | Sensor Size: | 1/3" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 135 | Sensor Type: | CMOS | Sensor Device: | Sony IMX290 |
| Pixel Size(µm): | 2.9(h) 2.9(v) | A/D Bits: | 12 | Shutter Speed: | 0.011 ms - 1649 ms |
| Interface: | USB3 | Voltage(VDC): | USB cable | Power(watts): | 1 W - 1.5 W |
| Lens Mount: | C,CS | Shutter Type: | Rolling | Weight(grams): | 18 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 20Lx36Wx36H |
