USB3 Area scan camera IDS Imaging U3-3886LE-M/C IDS Imaging U3-3886LE Rev 1.2
uEye+
USB3 Camera
Sony IMX178 Sensor
3088x2076 Resolution
Area Scan Camera

get a quote for this product

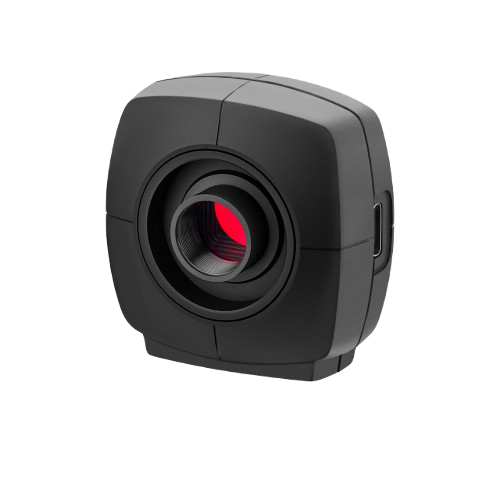

The U3-3886LE Rev.1.2 USB3 camera features a Sony IMX178 1/1.8" 6.4 megapixel rolling shutter CMOS sensor with a 2.4µm pixel size, and 54 fps at full 3088x2076 resolution. The U3-3886LE camera is built in a robust, lightweight, coated plastic housing with an S-mount lens holder.

uEye LE USB3 Cameras are available in housed or board-level variants with a C, CS, S mount lens holder or no lens holder for some board models, and color or monochrome.

uEye LE USB 3.0/3.1 Camera Family Features Features

  • VGA to 18MP Sony Pregius & Starvis / On-Semi /e2V
  • C / CS / S mount to bare board options
  • High Quantum Efficiencies (77% QE) and Dynamic range (< 75db)
  • High frame rates - 200 fps+

U3-3886LE-M/C Camera Features

  • 6.4 megapixel at 3088x2076 resolution
  • Sony IMX178 1/1.8" CMOS sensor
  • Housed camera with S lens mount
  • 54 fps
U3-3886LE-M-GL (B&W) Datasheet   U3-3886LE-C-HQ (Color) Datasheet U3-3886LE-M/C Manual Sensor Spec
Software All IDS Cameras
Manufacturer: IDS Model: U3-3886LE-M/C Total Pixels: 6,410,688
Resolution: 3088 (h) 2076 (v) Sensor Size: 1/1.8" Color/B & W: Color / Monochrome
Frame Rate (fps): 54 Sensor Type: CMOS Sensor Device: Sony IMX178
Pixel Size(µm): 2.4(h) 2.4(v) A/D Bits: 12 Shutter Speed: 0.014 ms - 1090 ms
Interface: USB3 Voltage(VDC): USB cable Power(watts): 1 W - 1.5 W
Lens Mount: S Shutter Type: Rolling Weight(grams): 36
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 25Lx46Wx47H
