USB3 Area scan camera IDS Imaging U3-3892SE-M/C IDS Imaging U3-3892SE Rev 1.2
uEye+
USB3 Camera
Sony IMX226 Sensor
4000x3000 Resolution
Area Scan Camera

get a quote for this product

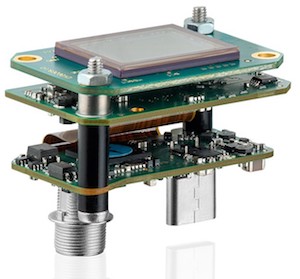

The U3-3892SE Rev.1.2 USB3 camera features a Sony IMX226 1/1.8" 12 megapixel rolling shutter CMOS sensor with a 1.85 µm pixel size, and 33 fps at full 4000x3000 resolution. The U3-3892SE is a board-level camera without a lens holder.

uEye SE USB 3.1 Gen1 Type C Cameras are available housed with a C-mount lens mount, or as a board-level camera with a C-mount lens mount or without a lens holder, and color or monochrome. With numerous options to choose from, uEye SE USB3 cameras are versatile and well-suited for many industrial applications, such as factory automation, engineering, and traffic applications. uEye+ LE USB3 cameras can be easily integrated with 3rd party compliant software or used with IDS Peak Software Suite SDK. All IDS cameras are backed by a 3 year warranty.

uEye SE USB 3.1 Gen1 Camera Family Features Features

  • Up to 25 megapixel CMOS sensors
  • USB 3.1 Gen1 w/ Type C connector
  • Suitable for single or multi-camera operation
  • Hirose-8 for GPIO

U3-3892SE-M/C Camera Features

  • Sony STARVIS IMX226 4000x3000 1/1.7" CMOS rolling shutter sensor
  • Backside illuminated (BSI) for high sensitivity
  • multi AOI
  • 33 fps at full 12MP resolution
Manufacturer: IDS Model: U3-3892SE-M/C Total Pixels: 12,000,000
Resolution: 4000 (h) 3000 (v) Sensor Size: 1/1.8" Color/B & W: Color / Monochrome
Frame Rate (fps): 33 Sensor Type: CMOS Sensor Device: Sony IMX226
Pixel Size(µm): 1.85(h) 1.85(v) A/D Bits: 12 Shutter Speed: 40µs to 609000µs
Interface: USB3 Voltage(VDC): 5V Power(watts): 2.4
Lens Mount: C Shutter Type: Rolling Weight(grams): 110
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 47Lx44Wx34H
