USB3 Area scan camera IDS Imaging U3-38J2XLE-M/C IDS Imaging U3-38J2XLE Rev 1.1
uEye+
USB3 Camera
Sony IMX415 Sensor
3864x2176 Resolution
Area Scan Camera

get a quote for this product

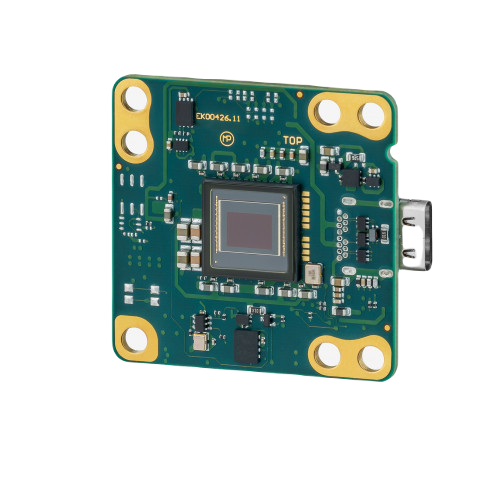

The uEye+ U3-38J2XLE USB3 camera features a Sony IMX415 1/3" 8 megapixel rolling shutter CMOS sensor with a 1.45 µm pixel size, and 24 fps at full 3864x2176 resolution. The camera is a board-level camera with no lens mount.

IDS Imaging uEye+ XLE USB3 cameras are available in a number of configurations that include housed or board-level, rolling or global shutter, and a C, CS, S, or M12 lens mount or no lens mount in some board cameras. The USB3 interface transmits data at 5 Gpbs. All uEye+ XLE cameras have a USB 3.1 Gen 1 connector. They communicate via the USB3 Vision protocol and are 100 percent GenICam-compliant. uEye+ XLE cameras are a cost-effective solution and feature a compact size that is ideal for embedded applications, and many other industrial applications such as agriculture, measurement technology, and transportation. uEye+ XLE cameras can be easily integrated with 3rd party compliant software or used with IDS Peak Software Suite SDK. All IDS cameras are backed by a 3 year warranty.

IDS Imaging uEye XLE USB3 Cameras Features

  • USB3 Vision
  • USB Type-C connector
  • GenICam compliant
  • Board-level and housed options

U3-38J2XLE-M/C Camera Features

  • 8.4 MP 4K resolution (3864x2176)
  • Board-level cameras without lens holder
  • 1.45 µm pixel size
  • Sony IMX415 sensor
Manufacturer: IDS Model: U3-38J2XLE-M/C Total Pixels: 8,408,064
Resolution: 3864 (h) 2176 (v) Sensor Size: 1/3" Color/B & W: Color / Monochrome
Frame Rate (fps): 24 Sensor Type: CMOS Sensor Device: Sony IMX415
Pixel Size(µm): 1.45(h) 1.45(v) A/D Bits: 12 Shutter Speed: .070 msµs to 1900 msµs
Interface: USB3 Voltage(VDC): USB cable Power(watts): 0.5 W - 1 W
Lens Mount: call Shutter Type: Rolling Weight(grams): 7
S/N Ratio(dB): call External Trigger: call Dimensions(mm): 8Lx36Wx36H
