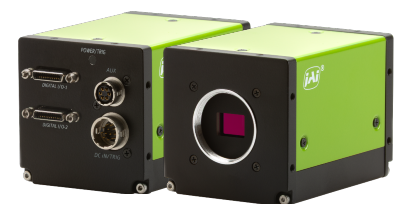

JAI AP-5100T-MCL
The Apex AP-5100T-MCL industrial camera incorporates prism-based imaging technology for superior color accuracy. This technology separates incoming light into red, green, and blue wavelengths, which are then captured by three Sony IMX548 CMOS sensors. This area scan camera features a Camera Link interface, three Sony IMX548 1/1.8" sensors, 3 × 5.1 megapixels at 55 frames per second, 2472x2064 resolution, 2.74µm pixel size, and a C-mount lens mount.
JAI Apex Prism-based cameras deliver exceptional high-fidelity color imaging making them an ideal solution for machine vision and scientific applications, such as inspection, quality control, and medical imaging, where precise color reproduction is crucial.
JAI Apex Camerax Features
AP-5100T-MCL Camera Features
| Manufacturer: | JAI | Model: | AP-5100T-MCL | Total Pixels: | 5,102,208 |
| Resolution: | 2472 (h) 2064 (v) | Sensor Size: | 1/1.8" | Color/B & W: | Color |
| Frame Rate (fps): | 55 | Sensor Type: | CMOS | Sensor Device: | Sony IMX548 |
| Pixel Size(µm): | 2.74(h) 2.74(v) | A/D Bits: | 12 | Shutter Speed: | 3.47 µs ∼ TBD |
| Interface: | Camera Link | Voltage(VDC): | 10.8 ∼ 26.4V | Power(watts): | call |
| Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 180 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 74Lx54Wx54H |
AP-5100T-MCL Datasheet
