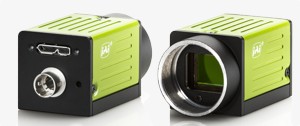

The GO-5000M-USB monochrome USB3 camera is built with a Lince5M 1" sensor enabling imaging at 5 megapixels at 62 frames per second.
JAI GO Series and GOX Series GigE, USB3, CoaXPress, and camera link cameras feature CMOS technology, low-noise pixels, global shutters, sequencer functions, and other advanced features that ensure image quality and excellent performance at a great price/performance ratio.
With their compact size (29 x 29 x 41.5 mm excluding lens mount) and weighing less than 50 grams, they are suitable for applications with tight space constraints. In addition, they have been tested for extensive shock (80G) and vibration (10G), and are encased in robust housing making them ideal for harsh industrial environments.
JAI Go Series / Go-X Series Family Features
GO-5000M-USB Camera Features
Manufacturer: | JAI | Model: | GO-5000M-USB | Total Pixels: | 5,242,880 |
Resolution: | 2560 (h) 2048 (v) | Sensor Size: | 1" | Color/B & W: | Monochrome |
Frame Rate (fps): | 62 | Sensor Type: | CMOS | Sensor Device: | e2v Lince5M |
Pixel Size(µm): | 5(h) 5(v) | A/D Bits: | 12 | Shutter Speed: | 10µs to 8000000µs |
Interface: | USB3 | Voltage(VDC): | 12 | Power(watts): | 2.8 |
Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 46 |
S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 41.5Lx29Wx29H |
