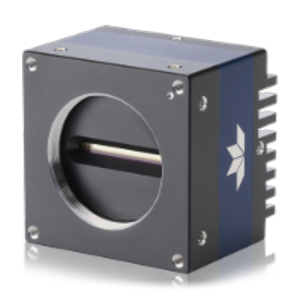

Teledyne DALSA Tetra 4k Color
The Teledyne DALSA Tetra 4k Color TL-GC-04K02T-00 line scan camera features 2.5GigE interface, 25 kHz line rate, 7µm pixel size, 4k (4096x3) resolution, an M42 lens mount, and Trilinear RGB colors for superior line scan color imaging.
Teledyne DALSA Tetra line scan cameras have an attractive price-performance ratio that makes line scan imaging more affordable for cost-conscious machine vision applications and other machine vision applications including electronics, optical sorting, printed materials, packaging, and web inspection. Tetra cameras are available in monochrome or color.
Tetra Line Scan Cameras Features
TL-GC-04K02T-00 Camera Features
| Manufacturer: | Teledyne DALSA | Model: | TL-GC-04K02T-00 | Total Pixels: | 12,288 |
| Resolution: | 4096 (h) 3 (v) | Sensor Size: | 28.67mm | Color/B & W: | Color |
| kHz: | 25 | Sensor Type: | CMOS | Sensor Device: | DALSA Proprietary |
| Pixel Size(µm): | 7(h) 7(v) | A/D Bits: | 8 | Shutter Speed: | call |
| Interface: | 2.5GigE | Voltage(VDC): | 12 - 24V or PoE | Power(watts): | <6 |
| Lens Mount: | M42 | Shutter Type: | Global | Weight(grams): | 297 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 50Lx62Wx62H |
TL-GC-04K02T-00 Datasheet
