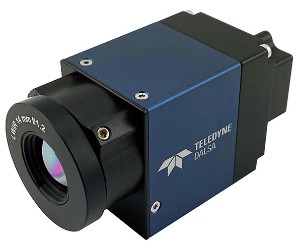

Teledyne DALSA Calibir GX M/F 640
Teledyne DALSA Calibir GXM640 uncooled Long Wave Infrared (LWIR) cameras offer 640x480 resolution at 30 fps with GigEVision and CSI-2 interface options for outstanding LWIR temperature measurement performance and are optimized for Size, Weight and Power (SWAP). The easy-to-use modular design can be integrated into tight spaces for compact, embedded solutions.
Calibir GXM640 thermal cameras are ideal for a wide range of temperature measurement applications up to 1,500 degrees C requiring radiometric calibration in the fields of surveillance and monitoring, defense and security, maintenance and general machine vision. Read more...
Calibir Longwave Infrared (LWIR) Thermal Cameras Features
Calibir GX M/F 640 Camera Features
| Manufacturer: | Teledyne DALSA | Model: | Calibir GX M/F 640 | Total Pixels: | 307,200 |
| Resolution: | 640 (h) 480 (v) | Sensor Size: | 13.6mm | Color/B & W: | LWIR |
| Frame Rate (fps): | 30 | Sensor Type: | Microbolometer | Sensor Device: | DALSA Proprietary |
| Pixel Size(µm): | 17(h) 17(v) | A/D Bits: | 21 | Shutter Speed: | 100µs to 100µs |
| Interface: | GigE | Voltage(VDC): | 12-24V | Power(watts): | 3.6 |
| Lens Mount: | M25, lens included | Shutter Type: | Rolling | Weight(grams): | 67 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 59.5Lx29Wx37H |
Camera Accessories
An Overview
Thermal Imaging for Fever Screening
Application Note
Thermal Imaging Technology for
Fever Screening
Calibir 640 Series Camera Brochure
Watch this video where LWIR reveals the difference between hot and cold liquids poured on the ground; it also shows the heat signatures of a motorcycle's engine and tire.
Watch this video to see how the Calibir cameras are used in several industrial applications.
Calibir GX M/F 640 Datasheet
