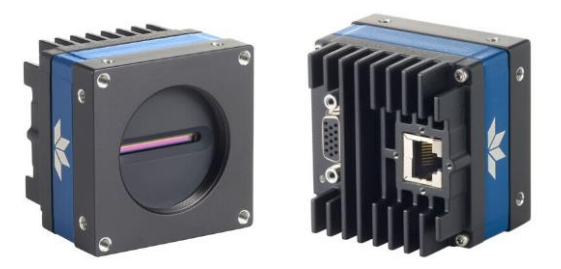

5GigE Line scan camera Teledyne DALSA L2-GC-04k04T Teledyne DALSA Linea2 L2-GC-04k04T
5GigE Camera
DALSA Proprietary Sensor
4096x3 Resolution
Line Scan Camera

get a quote for this product
Teledyne DALSA Linea2 L2-GC-04k04T color line scan cameras feature a trilinear line scan sensor, 7 µm pixel size, and a 40 kHz line rate. The 5GigE interface provides 5x the bandwidth when compared to a GigE camera — with no frame grabber needed. The trilinear sensor captures RGB native colors making the L2-GC-04k04T ideal for many industrial machine vision applications such as print, inspection, and sorting.

Teledyne DALSA Linea line scan cameras include a variety of sensors, optical formats, resolutions, interfaces, and color, monochrome, or multispectral line scan cameras.

Linea, Linea2, Linea, Linea Lite, Linea ML, Linea HS, Linea HS2 Line Scan Cameras Features

  • 2K to 32K resolution
  • Up to 1000 kHz scan rate
  • RGB color, monochrome, NIR, and multispectral options
  • Low cost line scan models

L2-GC-04k04T Camera Features

  • Teledyne DALSA trilinear CMOS sensor
  • RGB color
  • 7 µm pixel size
  • 5GigE interface - 5 times the bandwidth of GigE
L2-GC-04k04T Datasheet L2-GC-04k04T Manual
Software All Teledyne DALSA Cameras
Manufacturer: Teledyne DALSA Model: L2-GC-04k04T Total Pixels: 12,288
Resolution: 4096 (h) 3 (v) Sensor Size: 28.67mm Color/B & W: Color
kHz: 40 Sensor Type: CMOS Sensor Device: DALSA Proprietary
Pixel Size(µm): 7(h) 7(v) A/D Bits: 12 Shutter Speed: 5 µs to 3000 µs
Interface: 5GigE Voltage(VDC): 12 - 24V or PoE Power(watts): 13
Lens Mount: M42 Shutter Type: Global Weight(grams): &tl; 280
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 49.3Lx62Wx62H

Linea Line Scan
Camera Resources


click to calculate FOV/FL for this camera

Lens Calculator



Click to see our wide selection of camera accessories Camera Accessories

Introducing the Linea line scan camera
