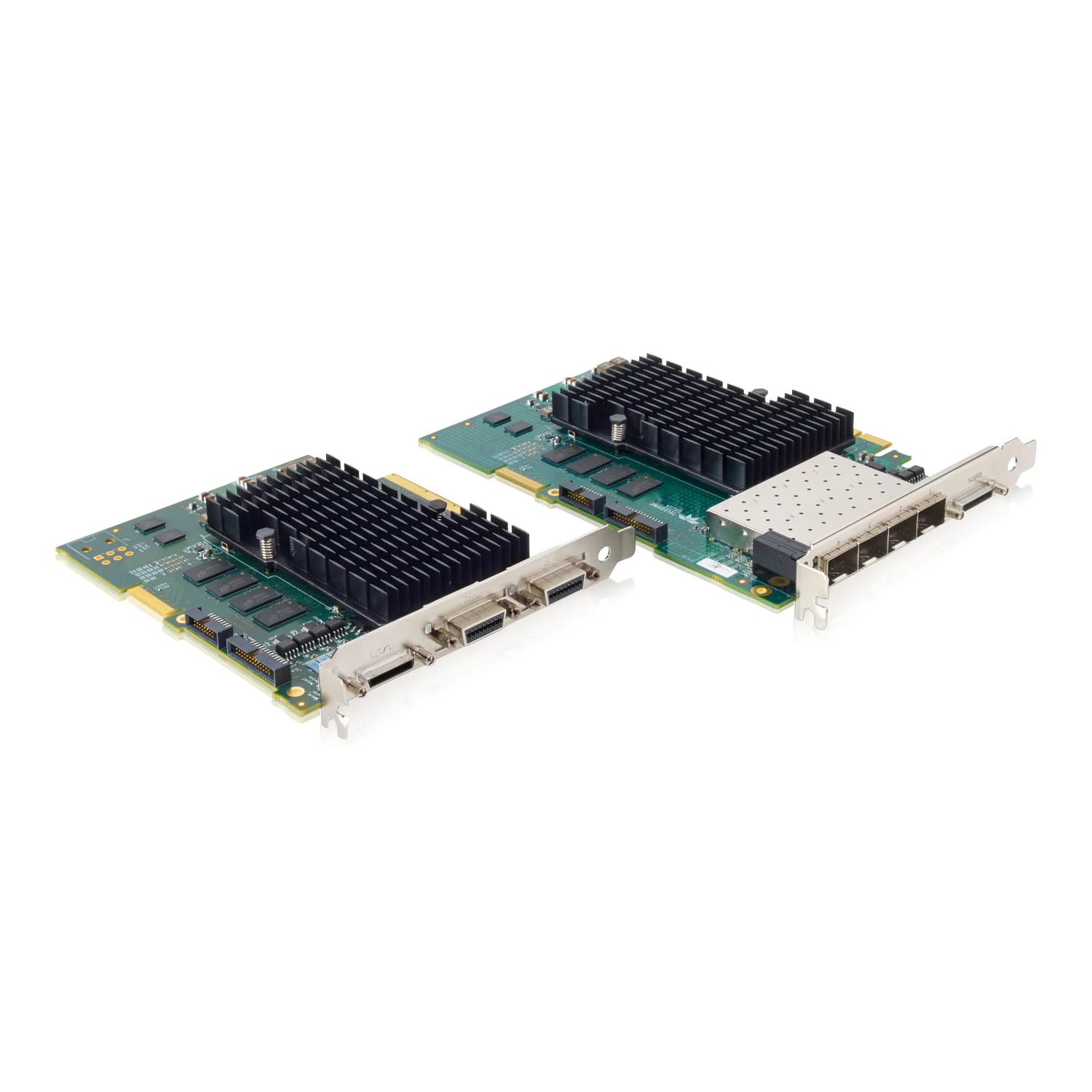

The Teledyne DALSA Xtium2 2 CLHS PX8 LC frame grabber is a single cable, single slot solution that supports up to 4-CLHS lanes. Each lane operates at 10-Gbs to acquire images at 5.0GB/s and transmits ready-to-use data at a sustained speed above 6.8GB/s to the host memory, thereby reducing the workload on the host. The CX4 connector supports Active Optical cable (AOC) for greater flexibility and extended cable lengths. The frame grabber is built on half-length PCI Express Gen 3 x 8 board.
Teledye DALSA Xtium2 frame grabbers provide the high performance required for industrial applications, such as computational intensive machine vision applications. Xtium2 frame grabbers are available with a CameraLink, CameraLink HS, or CoaXPress interface.
Teledyne DALSA's Sapera LT SDK is a free image acquisition and control toolkit for Teledyne DALSA 2D/3D, GigE, Camera Link, Camera Link HS cameras, and frame grabbers.
Datasheet
| Part Number | OR-A8S0-PX840 |
| Board Type | PCIe |
| Host Bus | PCI Express Gen3 x8 |
| Board Interface | Camera Link HS |
| Connectors | Data Input: 1 x CX4 thumbscrew, AOC ready Data Forward: 1 x CX4 thumbscrew, AOC ready Camera Control I/O: 1 x DH60-27P (main bracket) 1 x 26-pin shrouded header Multi-board sync: 1 x 16-pin shrouded connector |
| Camera Format | CLHS X-protocol (64 b/66 b): up to 4-lanes @ 10.3125 Gb/s |
| Transmission Rate | 4 x 10.3125 Gbs |
| Pixel Format | Mono: 8, 10, 12-bit/pixel; RGB: 8-bit/pixel/color (no alignment) |
| Camera Control | External Trigger input, Strobe out, Quadrature Encoder, Mulit-board Sync., Camera control through GenCP/SFNC, Bit-Error detection and correction |
| GPIO | 4x opto-couple(2 shared with External Trig); 8 LVTTL Outputs (1 shared with Strobe) |
| Frame Buffer | 512 MB |
| Features | Data-Forwarding for distributed image processing, Multi-Board Synchronization: grab images from multiple independent cameras in one image buffer, Long cable lengths (AOC), Supports T2IR (Trigger2Image Reliability) framework |
| Software | Sapera LT SDK, Sapera Vision Software, NB: Contact Teledyne DALSA sales for Linux availability |
| OS Support | Windows 7 (32-bit)*, Windows 7 (64-bit)*, Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64 |
