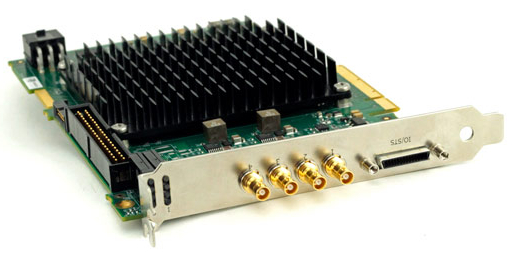

The Xtium2™-CXP PX8 CoaXPress frame grabber series supports PCI Express™ Gen 3.0 and CoaXPress version 2.0 industry standards to deliver high-speed image acquisition and image data transfer. The half-length PCIe Gen3 x 8 board transfers image data to the host with a bandwidth of up to 6.4GB/sec with up to 4 CXP12 input channels at 12.5 Gbps per channel. The sustained throughput and pre-processed image data reduces the workload for the host.
The Xtium2-CXP PX8 CoaXPress frame grabber works with monochrome, color, area and line scan cameras with up to 4 CXP12 or CXP6 cameras with an image acquisition input bandwidth up to 5.0GB/s. This frame grabber is available in single, dual, or quad port configurations, and supports Microsoft Windows and Linux operating systems.
The Teledyne DALSA's Sapera LT SDK is a free image acquisition and control toolkit for Teledyne DALSA 2D/3D, GigE, Camera Link, Camera Link HS cameras, and frame grabbers.
| Feature | Specification |
| Part Number | Quad: OR-A8X0-XPX40, Single: OR-A8X0-XPX10, Dual: OR-A8X0-XPX20 |
| Board Type | PCIe |
| Host Bus | PCIe Gen 3.0 |
| Board Interface | CoaXPress |
| Connectors | Camera: 4 x Micro-BNC (also known as HD-BNC) (6 x Micro-BNC ready) |
| Camera Format | Compatible with CoaXpress 2.0 |
| Pixel Clock | N/A |
| Transmission Rate | CXP 1 Gbs through CXP 12.5 Gbs |
| Bits per Pixel | Mono: 8, 10, 12, 14 and 16-bit, RGB: 8, 10 or 12-bit/pixel/color, Bayer: 8, 10 and 12-bit/pixel |
| GPIO | DH60-27 on main bracket |
| Frame Buffer | 1 GB |
| OS Support | Windows 10 (32-bit), Windows 10 (64-bit) |
Datasheet
